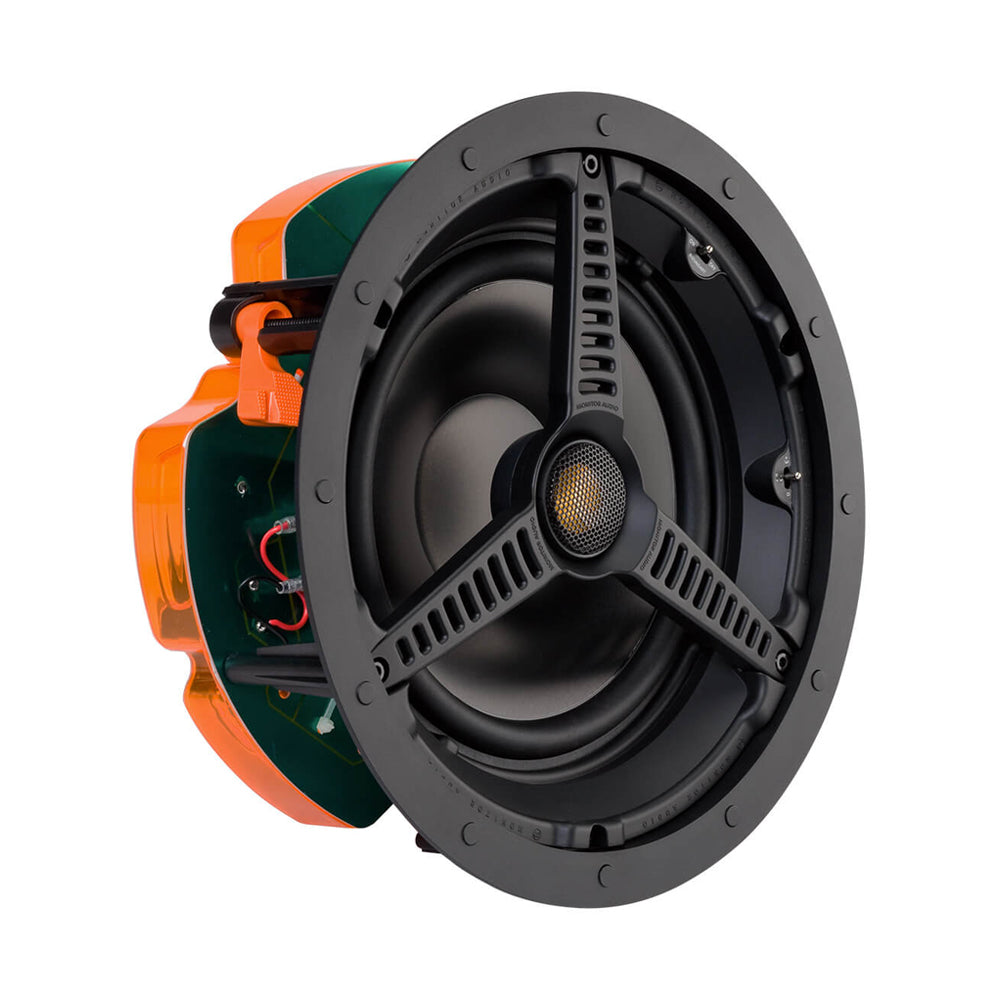

Monitor Audio C280 8" In-Ceiling Speaker

An 8-inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the 2-way models.

Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

Frequency Response

50 Hz - 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

90 dB

Maximum SPL

111.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 - 120 W

Drive Unit Complement

8" C-CAM cone bass driver

1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)

Boundary Compensation Switch

Overall Diameter (Including Grille)

285 mm (111/4")

Overall Depth (Including Grille)

126 mm (415/16")

Mounting Depth

122 mm (413/16")

Cut-Out Hole Diameter

247 mm (93/4")

Fixing Type

3 position Tri-Grip dog fixings

Construction Material

Mineral filled ABS, RoHS compliant

Weight

2.8 kg (6 lb 2 oz)

Pre-Construction Bracket

CB8 Pre-Construction Bracket (Green)

Back Box

CCBOX-R / CMBOX-R

Sold As

Single Unit
