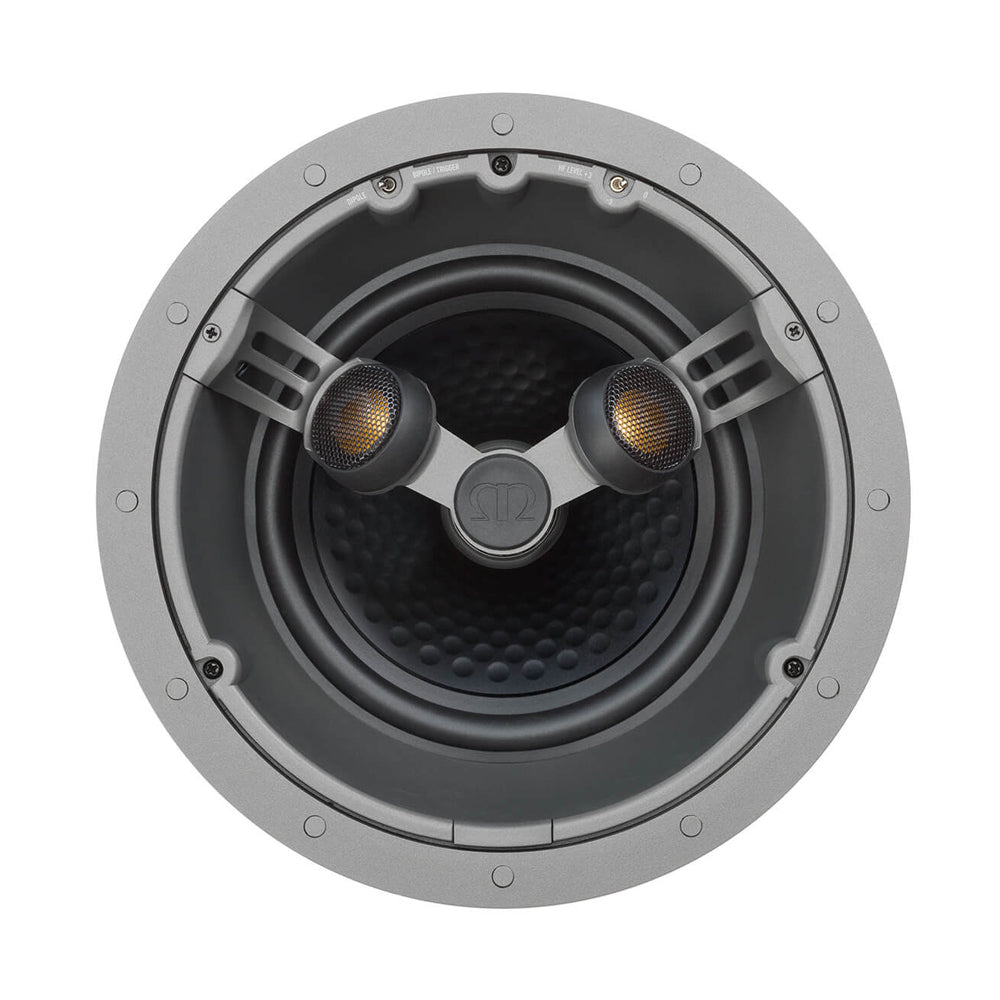

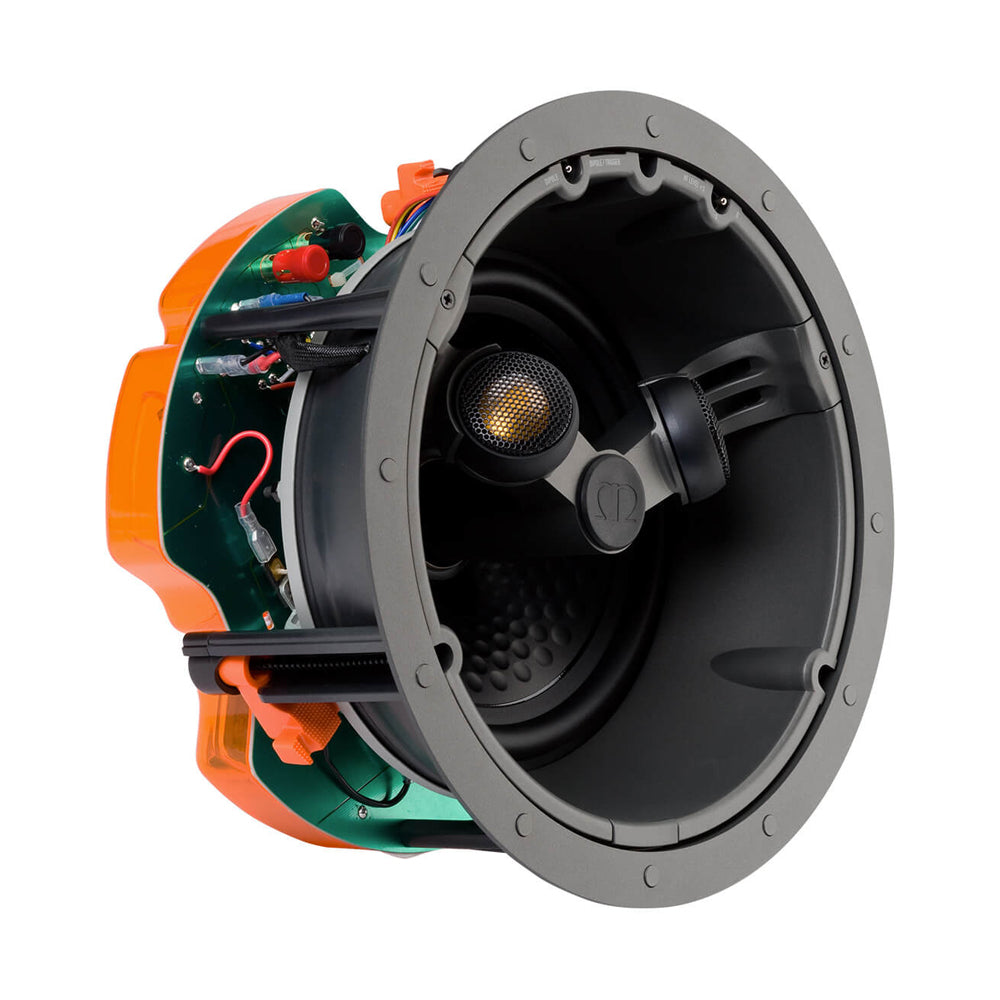

Monitor Audio C380-FX 8" In-Ceiling Surround Speaker

Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound.

Incorporates an 8-inch C-CAM RST bass driver 8-inch C-CAM bass driver and dual 1-inch C-CAM Gold Dome tweeters mounted at a precise fixed-angle for optimised performance.

Frequency Response

45 Hz - 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

90 dB

Maximum SPL

111.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 - 120 W

Drive Unit Complement

8" C-CAM cone bass driver featuring RST

2 x 1" C-CAM fixed angle Gold Dome tweeters

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)

Bipole / Dipole Switch with Additional 12v Trigger Switching

Overall Diameter (Including Grille)

285 mm (111/4")

Overall Depth (Including Grille)

161 mm (65/16")

Mounting Depth

157 mm (63/16")

Cut-Out Hole Diameter

247 mm (93/4")

Fixing Type

3 position Tri-Grip dog fixings

Construction Material

Mineral filled ABS, RoHS compliant

Weight

3.2 kg (7 lb)

Pre-Construction Bracket

CB8 Pre-Construction Bracket (Green)

Back Box

CMBOX-R

Sold As

Single Unit
