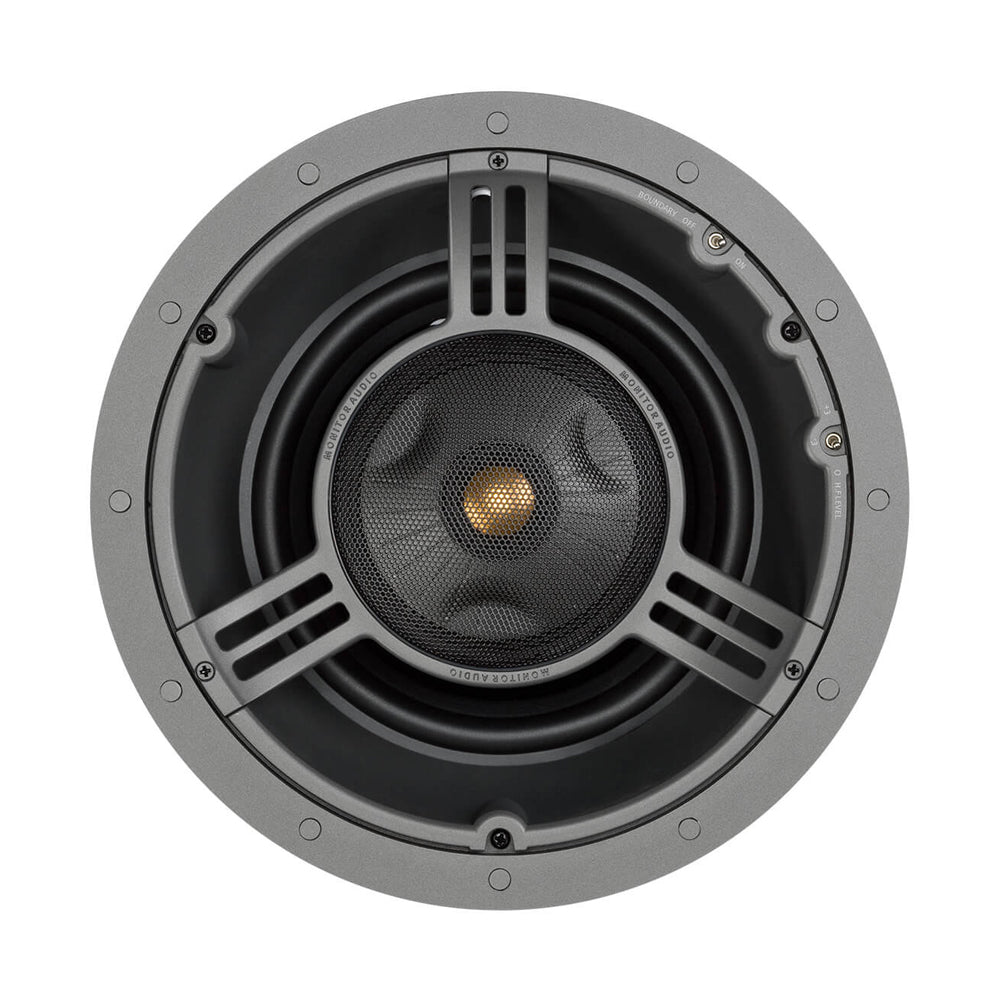

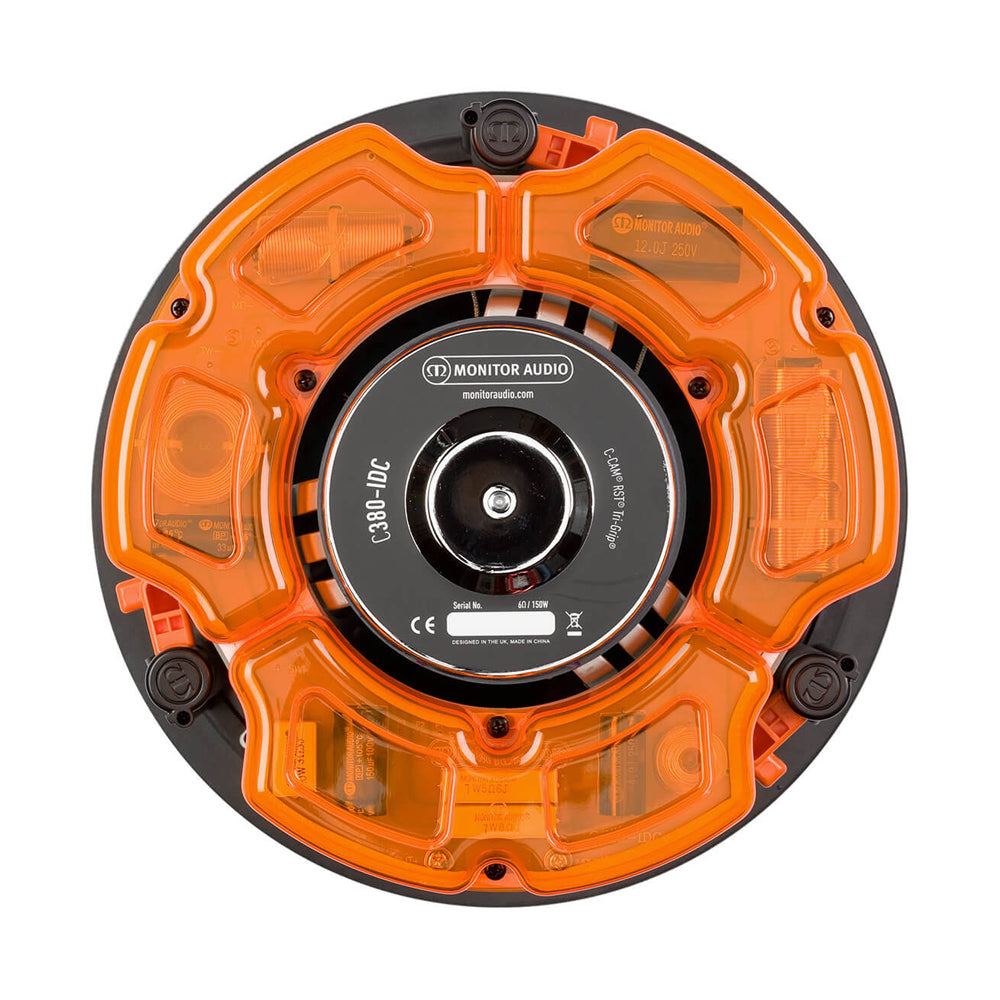

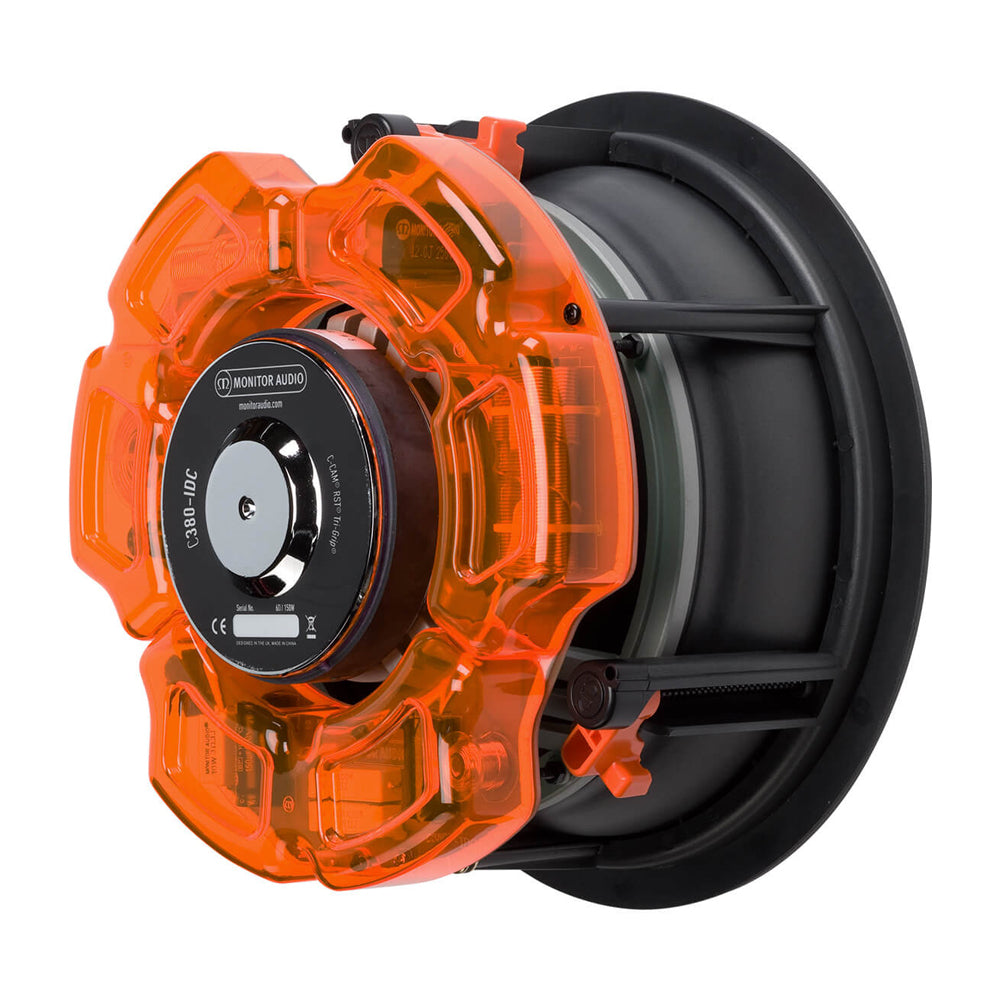

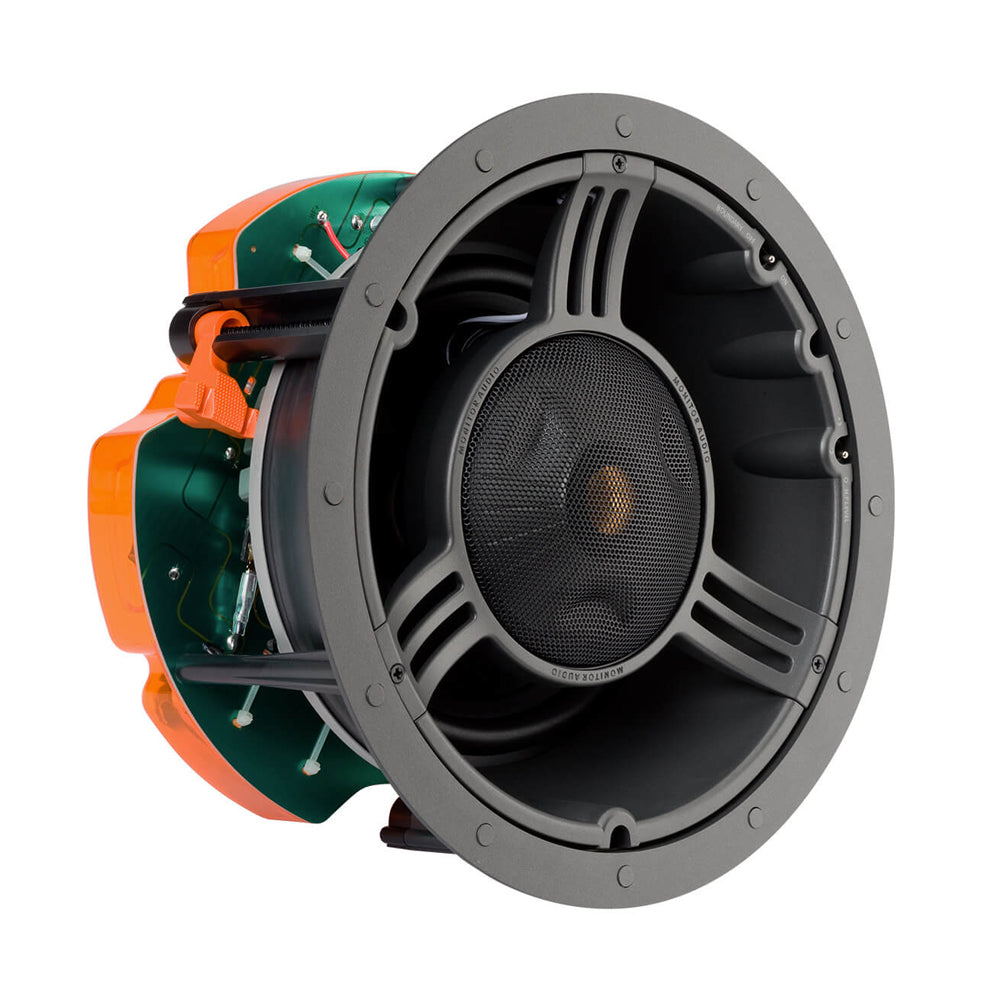

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.
3-way design provides deeper bass, higher system output and greater power handling.
45 Hz - 30 kHz
Power Handling (RMS)
Recommended Amplifier Requirements
40 - 150 W
Drive Unit Complement
8" C-CAM cone bass driver featuring RST pivoting IDC module housing:
4" C-CAM RST inverted mid range driver
1" C-CAM Gold Dome tweeter
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

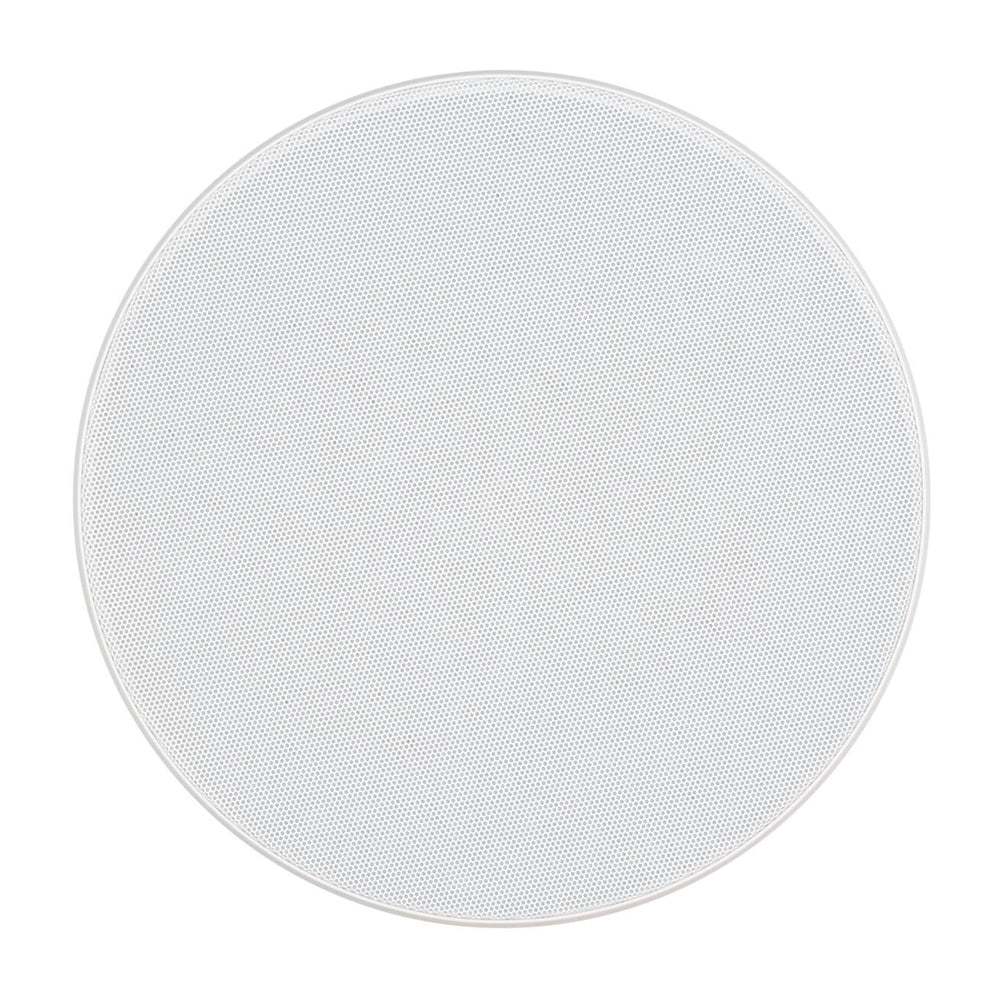

Overall Diameter (Including Grille)
285 mm (111/4")
Overall Depth (Including Grille)
161 mm (65/16")
157 mm (63/16")
Cut-Out Hole Diameter
247 mm (93/4")
3 position Tri-Grip dog fixings
Mineral filled ABS, RoHS compliant
3.64 kg (8 lb)
CB8 Pre-Construction Bracket (Green)
