Monitor Audio CP-CT260 6" In-Ceiling Acoustically Sealed Speaker

The CP-CT260's pivoting C-CAM tweeter is joined by a 6" C-CAM bass driver - and high frequency level adjustment by a boundary compensation control for optimum bass tuning when positioned near room corners.

Technology

• Pivoting C-CAM Gold Dome tweeter and C-CAM bass driver.
• High overall efficiency.
• High frequency level adjustment (+/-3 dB).
• Boundary compensation controls.
• Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

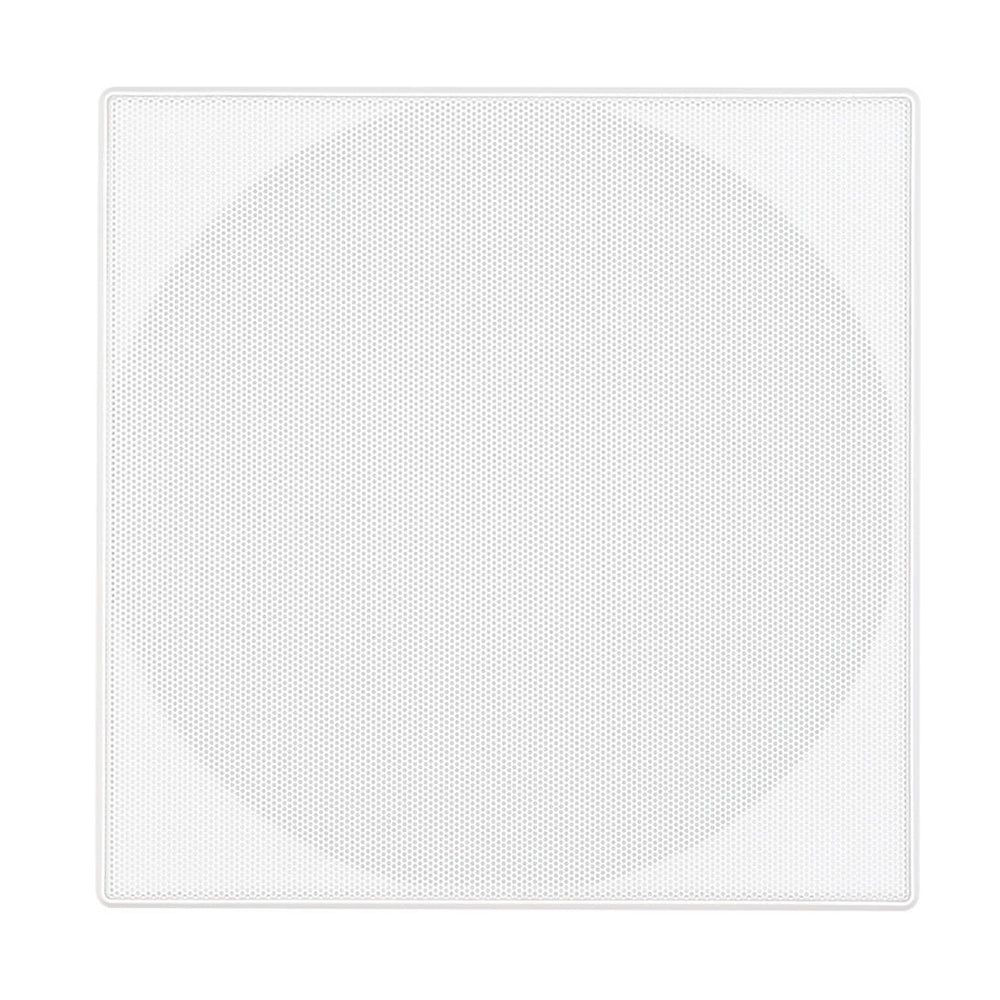

• Magnetic and easily removable steel grille.
• Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
• Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Frequency Response

66 Hz - 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

88 dB

Maximum SPL

106.9 dBA

Power Handling (RMS)

65 W

Recommended Amplifier Requirements

20 - 65 W

Crossover Frequency

2.6 kHz @ 12 dB / Octave

Drive Unit Complement

2-Way

6" C-CAM cone bass driver

1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch

(+3 dB / 0 dB / -3 dB)

Boundary Compensation Switch

Overall Diameter (Including Grille)

285 mm (111/4")

Overall Depth (Including Grille)

155 mm (61/8")

Cut-Out Hole Diameter

244 mm (95/8")

Mounting Depth

151 mm (515/16")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight

2 kg (6 lb 2 oz)

Connection

Gold plated 'push' type terminals

Pre-Construction Bracket

CB8 Pre-Construction Bracket (Green)

Back Box

CCBOX-L

Sold As

Single Unit
