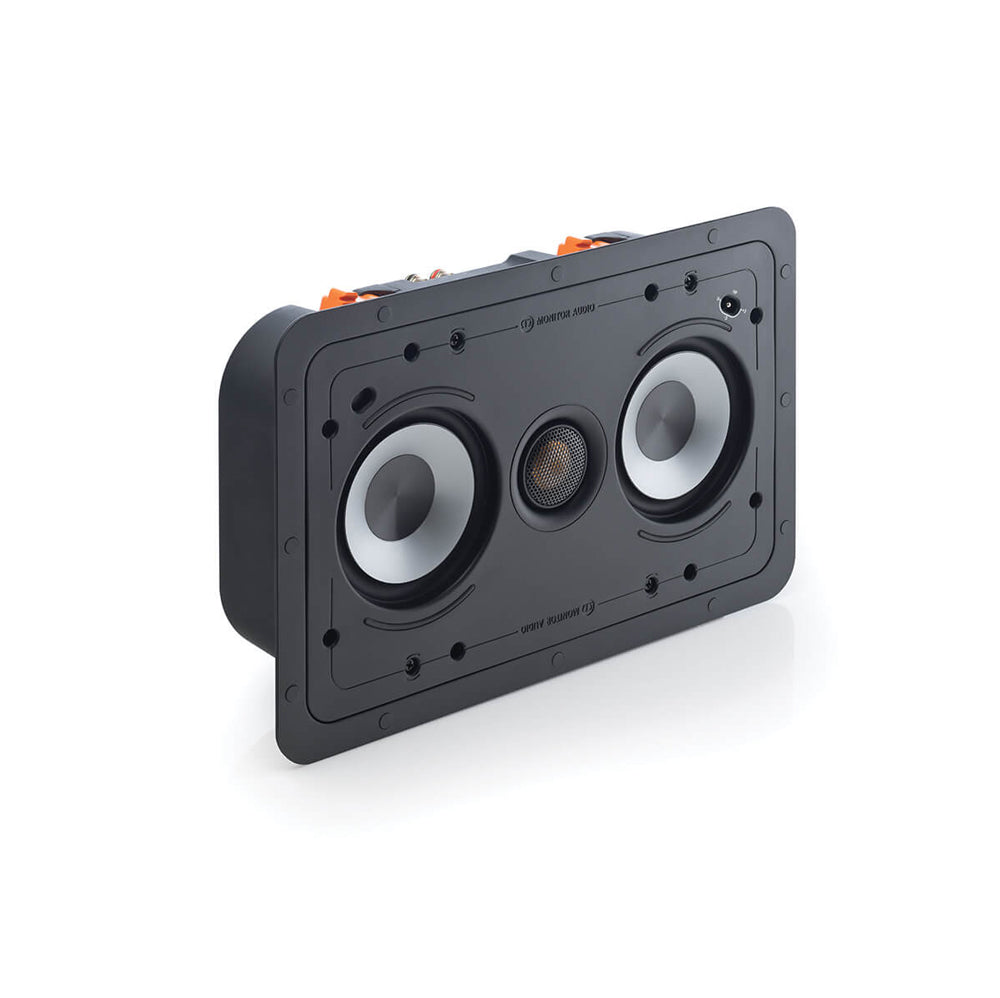

Monitor Audio CP-WT140LCR 4" In-Wall Acoustically Sealed Centre Speaker

The CP-WT140LCR is a multi-purpose speaker, for portrait or landscape applications as a high performance music or theatre satellite.

Utilising twin 4" MMP II drivers astride a C-CAM tweeter, the drivers offer greater radiating area working in tandem than a single 6" bass driver.

Technology

• Pivoting C-CAM Gold Dome tweeter.
• 2 x MMP II bass drivers.
• High overall efficiency.
• High frequency level adjustment (+/-3 dB).
• Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
• Magnetic and easily removable steel grille.
• Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
• Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Frequency Response

60 Hz - 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

88 dB

Maximum SPL

108.8 dBA

Power Handling (RMS)

100 W

Recommended Amplifier Requirements

20 - 100 W

Crossover Frequency

2.6 kHz @ 12 dB / Octave

Drive Unit Complement

2 x 4" MMP II cone bass driver

1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Dimensions (H x W x D)

217 x 333 mm (89/16 x 131/16")

Overall Depth (Including Grille)

103 mm (41/16")

Cut-Out Dimensions

183 x 299 mm (73/16 x 113/4")

Mounting Depth

97 mm (313/16")

Fixing Type

4 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight

2.5 kg (5 lb 8 oz)

Pre-Construction Bracket

WB4LCR Pre-Construction Bracket (Dark Brown)

Sold As

Single Unit
