Overview

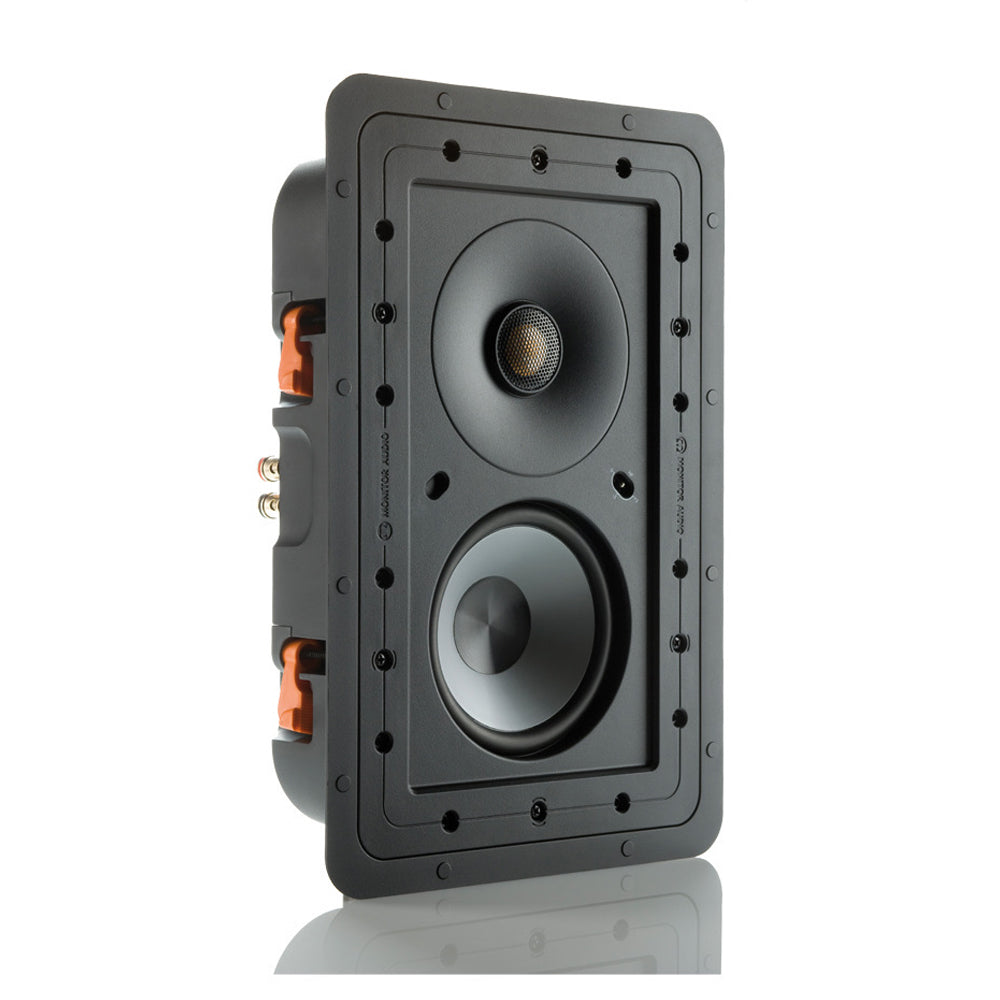

Offering high impact audio and discreet trimless design for smaller environments the entry-level CP-WT150 in-wall model features a 5" MMP II bass driver, high frequency level adjustment (+3 dB / 0 dB / -3 dB) and a pivoting C-CAM tweeter.
Technology
- Pivoting C-CAM Gold Dome tweeter and MMP II bass driver.
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).

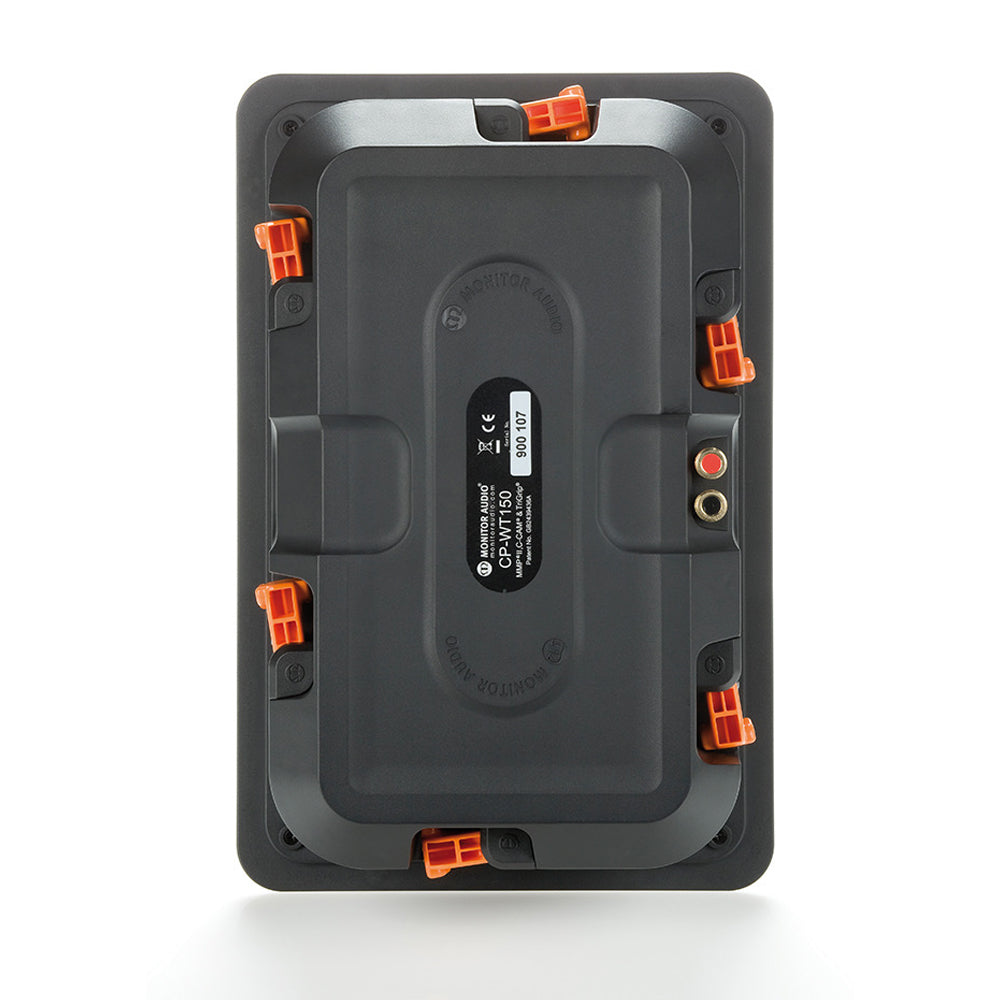

- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

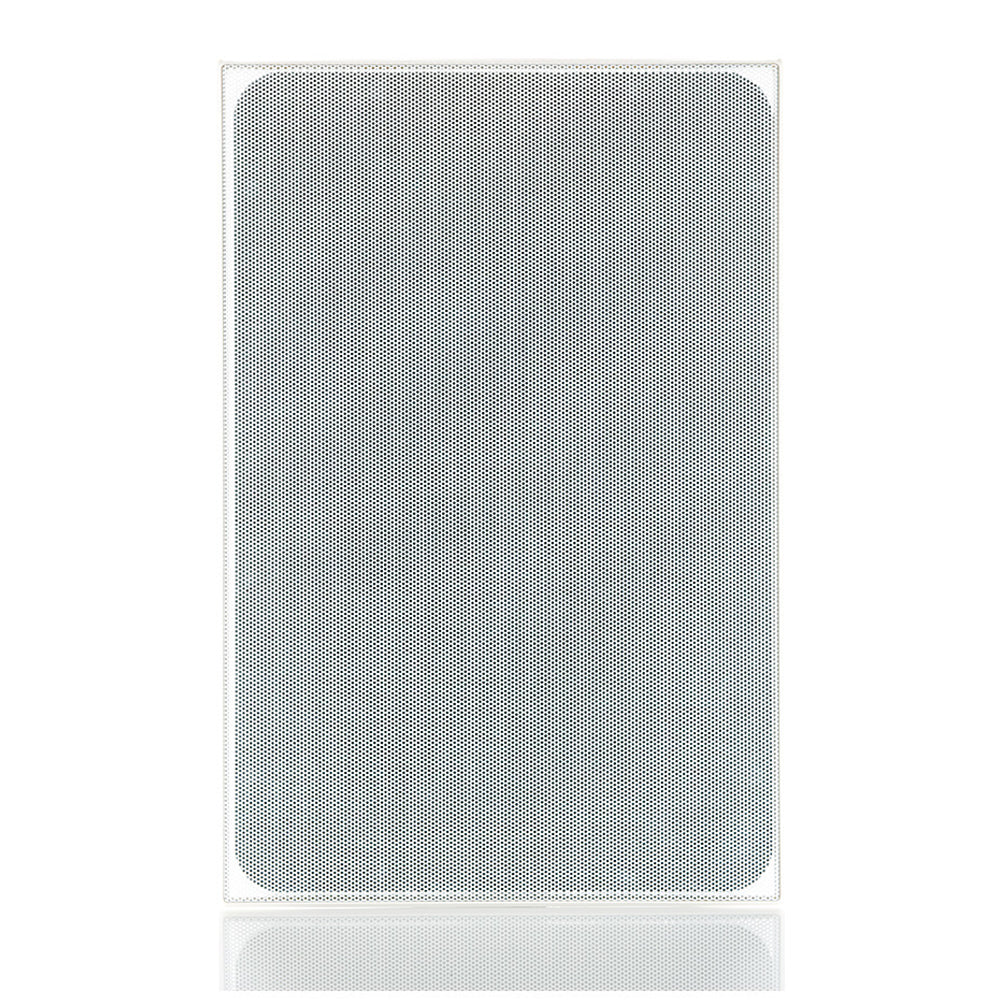

- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Frequency Response
75 Hz - 25 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
85 dB
Maximum SPL
102.8 dBA
Power Handling (RMS)
50 W
Recommended Amplifier Requirements
20 - 50 W
Crossover Frequency
2.8 kHz @ 12 dB / Octave
Drive Unit Complement
2-Way
5" MMP II cone bass driver
1" C-CAM Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Dimensions (H x W x D)
360.5 x 242 mm (143/16 x 91/2")
Overall Depth (Including Grille)
102 mm (4")
Cut-Out Dimensions
326 x 207 mm (1213/16 x 81/8")
Mounting Depth
96 mm (33/4")
Fixing Type
6 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic (RoHS2 Compliant)
Connection
Gold plated 'push' type terminals
Weight
2.65 kg (5 lb 14 oz)
Pre-Construction Bracket
WB6 Pre-Construction Bracket (Purple)
Sold As
Single Unit
Incorporating Monitor Audio's innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-CT380IDC represents the highest level of new CP performance.
The IDC module houses a 4" C-CAM inverted midrange driver surrounding a 25 mm C-CAM Gold Dome tweeter.
Technology
- Pivoting module consisting of IDC midrange driver and Gold Dome tweeter.
- C-CAM bass driver featuring Rigid Surface Technology (RST).
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).
- Midrange frequency level adjustment (+/-3 dB).
- Boundary compensation controls.
- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Specifications
Frequency Response
50 Hz - 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
89 dB
Maximum SPL
109.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 - 120 W
Crossover Frequency
Bass low pass: 300 Hz @ 6 dB / Octave
Mid: 300 Hz @ 6 dB / Octave
& 3 kHz @ 12 dB / Octave
Drive Unit Complement
3-Way
8" C-CAM RST cone bass driver
4" C-CAM IDC cone mid range driver
1" C-CAM Gold Dome tweeter
(tweeter & midrange driver combined in a pivoting module)
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+ 3dB/ 0 dB/ -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
309 mm (123/16")
Overall Depth (Including Grille)
187 mm (73/8")
Cut-Out Hole Diameter
274 mm (1013/16")
Mounting Depth
181 mm (71/8")
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic (RoHS2 Compliant)
Connection
Gold plated 'push' type terminals
Weight
4.3 kg (9 lb 8 oz)
Pre-Construction Bracket
CB10 Pre-Construction Bracket (Light Brown)
Sold As
Single Unit
Accessories
We currently do not have any accessories available for Monitor Audio CP-WT150 5" In-Wall Acoustically Sealed Speaker.
