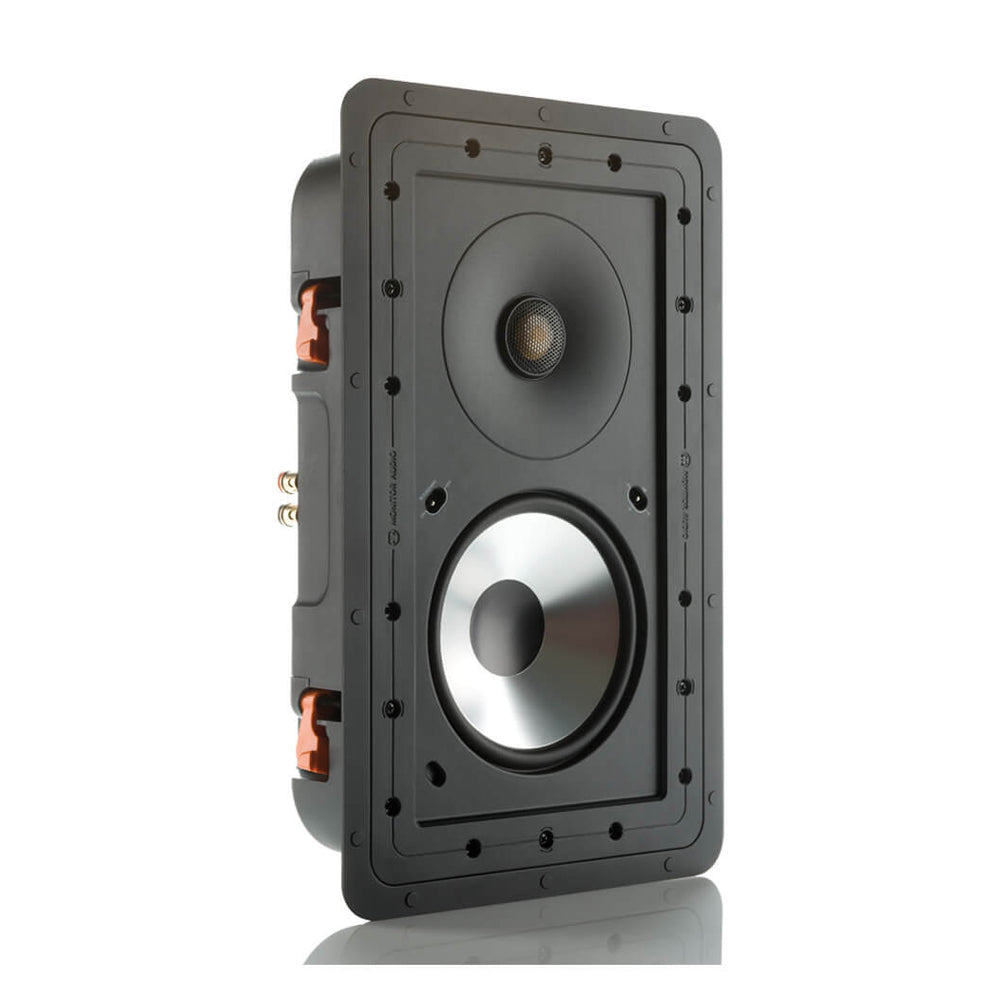

Monitor Audio CP-WT260 6" In-Wall Acoustically Sealed Speaker

The CP-WT260's pivoting C-CAM tweeter is joined by a 6" C-CAM bass driver - and high frequency level adjustment by a boundary compensation control for optimum bass tuning when positioned near room corners.

Technology

• Pivoting C-CAM Gold Dome tweeter and C-CAM bass driver.
• High overall efficiency.
• High frequency level adjustment (+/-3 dB).
• Boundary compensation controls.
• Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
• Magnetic and easily removable steel grille.
• Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
• Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Frequency Response

65 Hz - 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

88 dB

Maximum SPL

106.9 dBA

Power Handling (RMS)

65 W

Recommended Amplifier Requirements

20 - 65 W

Crossover Frequency

2.6 kHz @ 12 dB / Octave

Drive Unit Complement

2-Way

6" C-CAM cone bass driver

1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)

Boundary Compensation Switch

Overall Dimensions (H x W x D)

415 x 262.5 mm (165/16 x 105/16")

Overall Depth (Including Grille)

102 mm (4")

Cut-Out Dimensions

381 x 228 mm (15 x 9")

Mounting Depth

96 mm (33/4")

Fixing Type

6 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight

3.31 kg (7 lb 4 oz)

Pre-Construction Bracket

WB8 Pre-Construction Bracket (Green)

Back Box

WCBOX-L

Sold As

Single Unit
