Monitor Audio W180 8" In-Wall Speaker

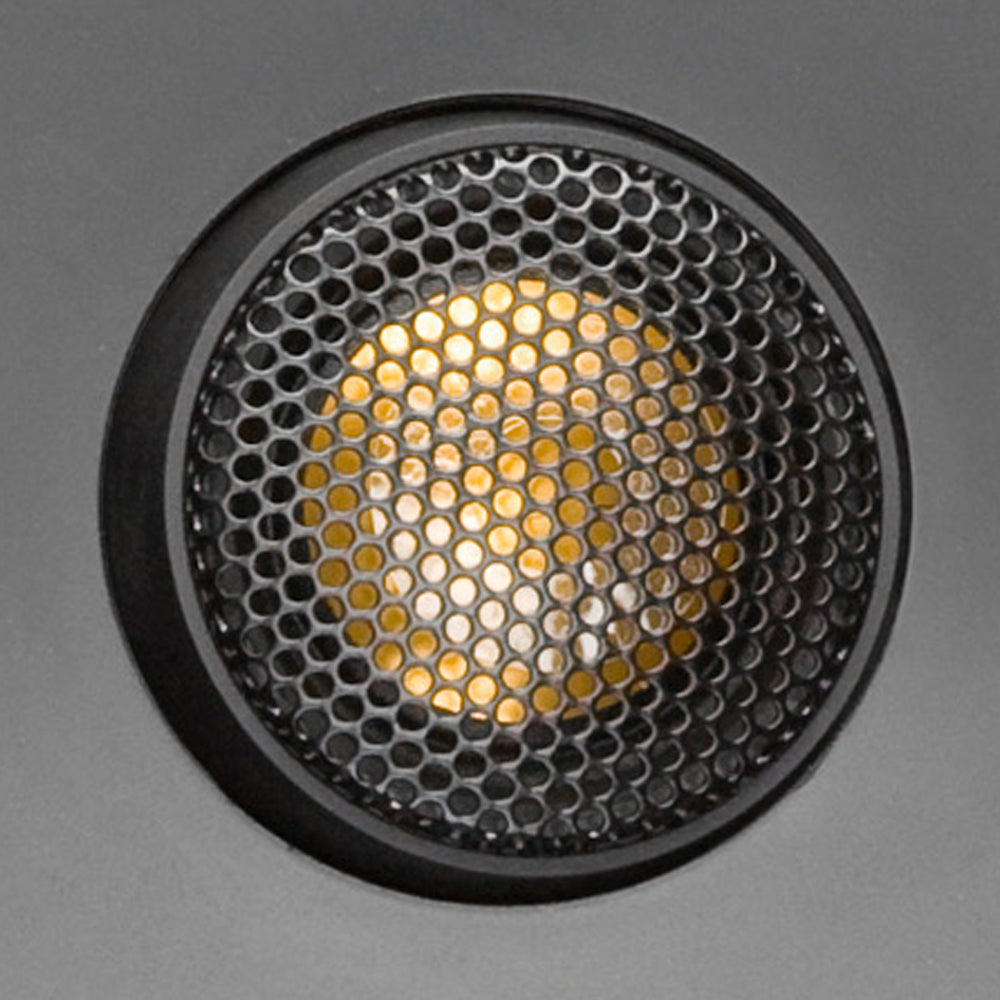

Incorporating an 8-inch MMP II bass driver with Monitor Audio's signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

Frequency Response

50 Hz - 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

90 dB

Maximum SPL

111.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 - 120 W

Drive Unit Complement

8" MMP II cone bass driver

1" C-CAM Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille)

441 x 288 mm (173/8 x 115/16")

Overall Depth (Including Grille)

104 mm (41/8")

Mounting Depth

100 mm (315/16")

Cut-Out Hole Diameter

387 x 234 mm (151/4" x 93/16")

Fixing Type

6 position Tri-Grip dog fixings

Construction Material

Mineral filled ABS, RoHS compliant

Weight

3.08 kg (6 lb 12 oz)

Pre-Construction Bracket

WB8 Pre-Construction Bracket (Green)

Back Box

WCBOX-L

Sold As

Single Unit
