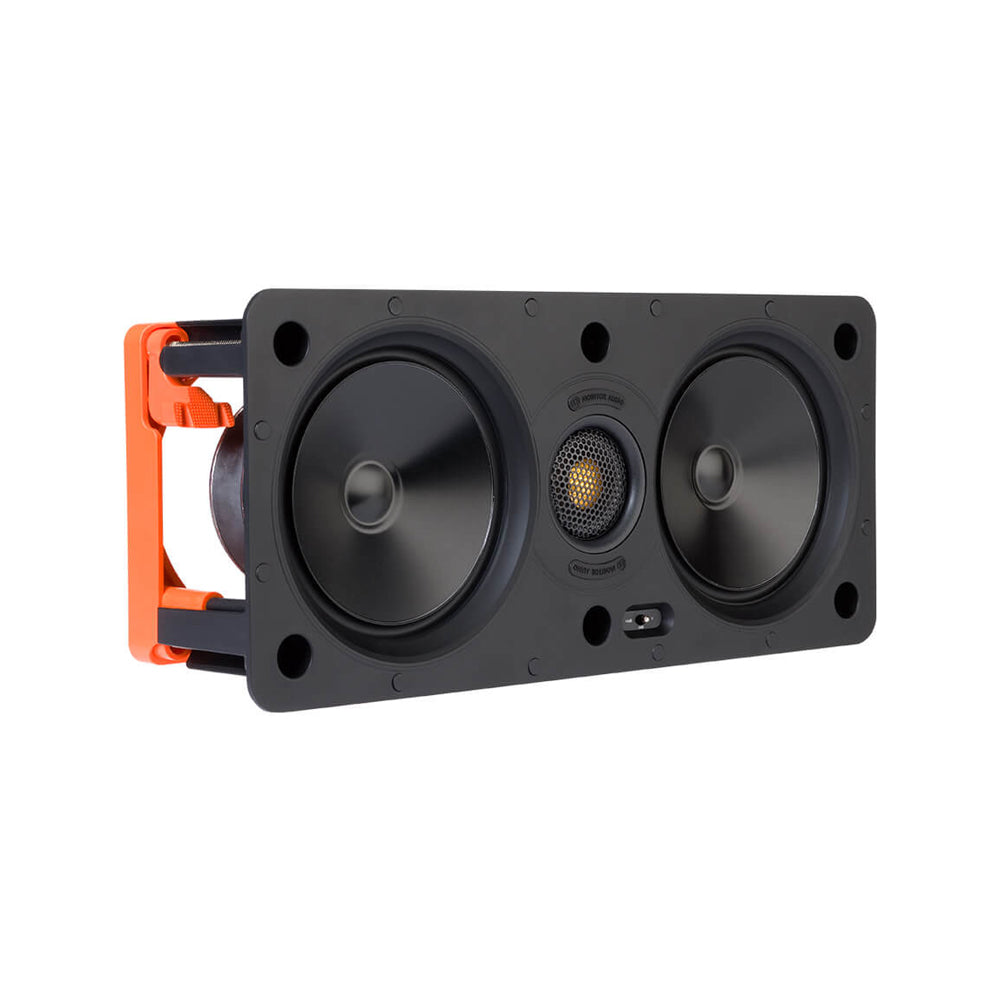

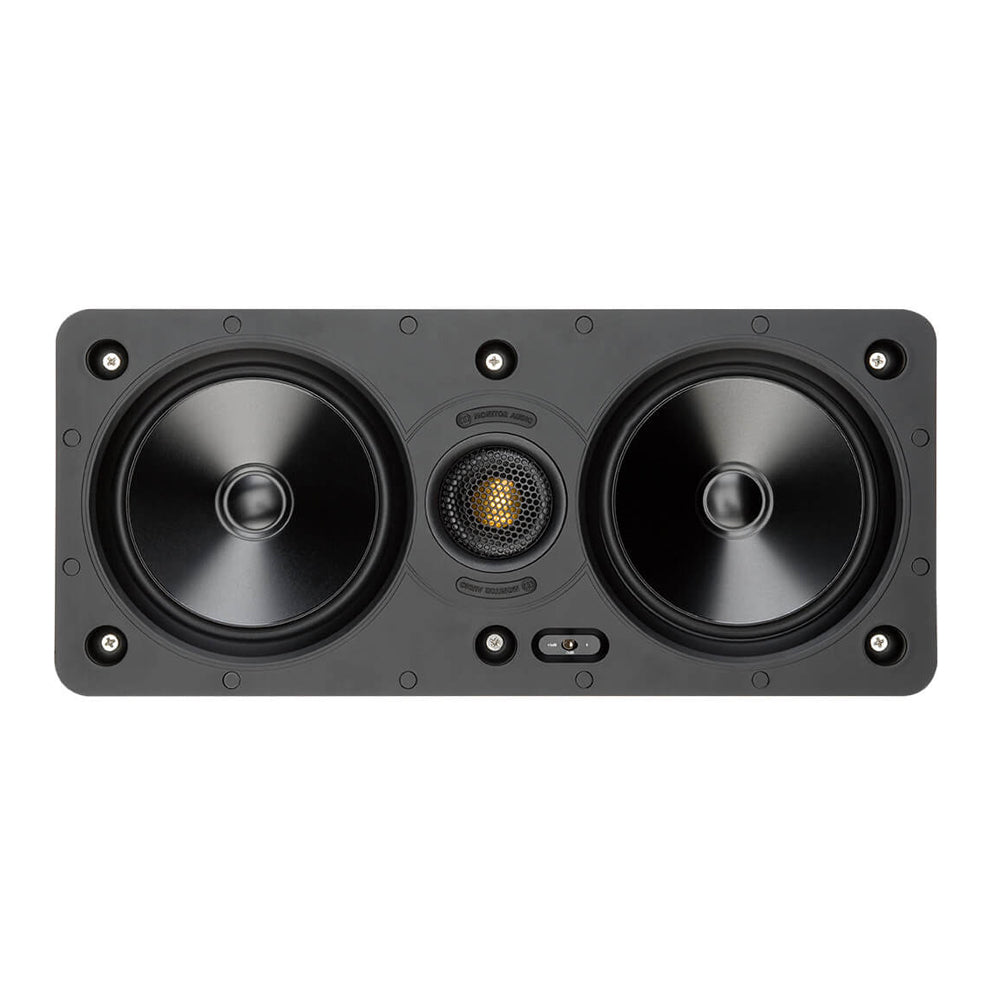

Monitor Audio W250-LCR 5" In-Wall Centre Speaker

The 2-way W250-LCR in-wall model with 5-inch drivers features Monitor Audio's C-CAM cones coupled with a pivoting version of our C-CAM Gold Dome tweeter.

These in-wall models can be used vertically or horizontally: the ideal aspect for centre-channel applications in discreet home theatre systems.

This model also provides high frequency level adjustment for super-fine audio tuning.

Frequency Response

60 Hz - 30 kHz

Nominal Impedance

8 ohms

Sensitivity (1W@1M)

88 dB

Maximum SPL

108 dBA

Power Handling (RMS)

100 W

Recommended Amplifier Requirements

30 - 100 W

Drive Unit Complement

2 x 5" C-CAM cone bass driver

1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter

Controls

High Frequency Level Switch (+3 dB / 0 dB / -3 dB)

Overall Dimensions (Including Grille (H x W x D))

177.4 x 385.2 mm (7 x 153/16")

Overall Depth (Including Grille)

105 mm (41/8")

Mounting Depth

100.2 mm (315/16")

Cut-Out Dimensions

145 x 353 mm (53/4 x 137/8")

Required Clearance for Doglegs in Centre Configuration 400 x 197 mm (15 3/4" x 7 3/4")

Fixing Type

Tri-Grip dog fixings

Construction Material

Mineral filled ABS, RoHS compliant

Weight

3.76 kg (8.3 lb)

Pre-Construction Bracket

WB5LCR Pre-Construction Bracket (Yellow)

Sold As

Single Unit

We currently do not have any accessories available for Monitor Audio W250-LCR 5" In-Wall Centre Speaker.
