Monitor Audio W380-IDC 8" In-Wall 3-Way Speaker

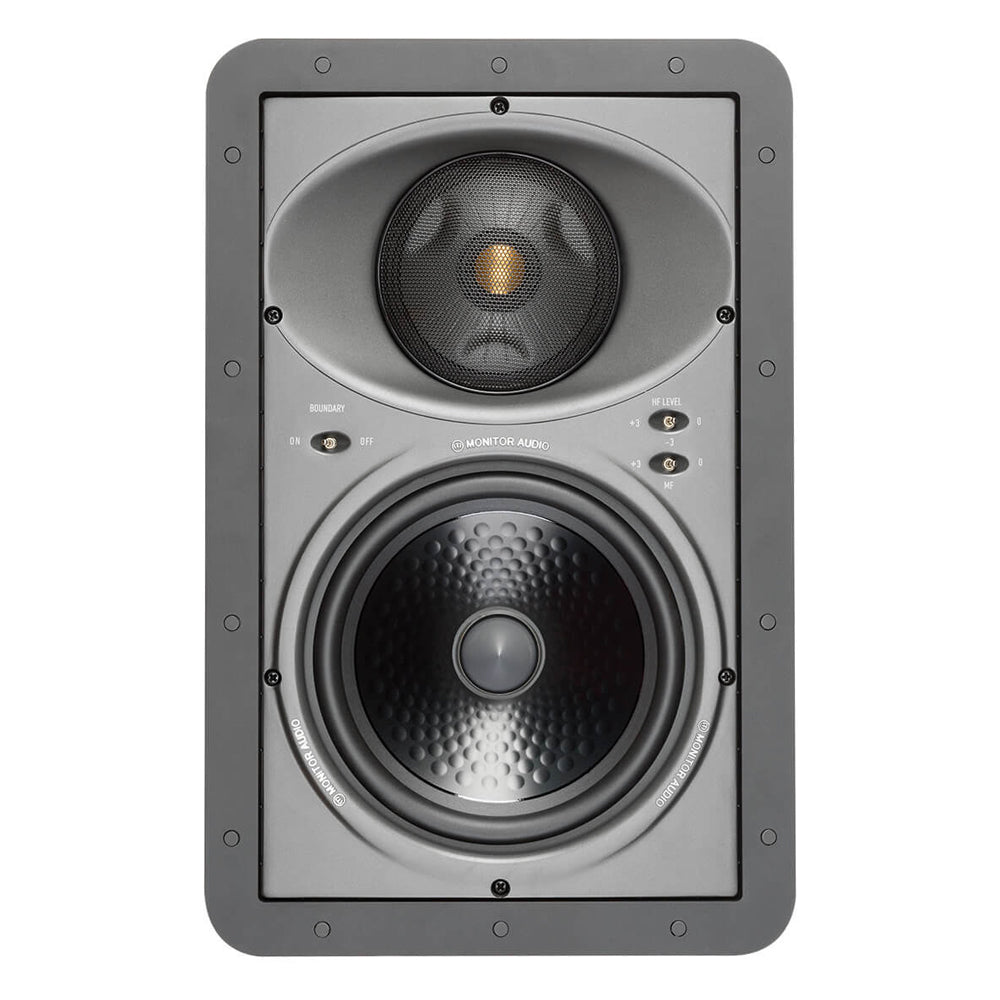

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.
Regular price
£440.00
Sale price
£440.00
Regular price
£440.00
Sold out
Unit price
per

  • Overview
  • Specifications
  • Accessories
  • Articles

Overview

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.

True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation.

Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

Specifications

Frequency Response

45 Hz - 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

90 dB

Maximum SPL

111.6 dBA

Power Handling (RMS)

150 W

Recommended Amplifier Requirements

40 - 150 W

Drive Unit Complement

8" C-CAM cone bass driver featuring RST, pivoting IDC module housing:

4" C-CAM RST inverted mid range driver

1" C-CAM Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)

MF Level Switch (+3 dB / 0 dB / -3 dB)

Boundary Compensation Switch

Overall Diameter (Including Grille)

441 x 288 mm (173/8 x 115/16")

Overall Depth (Including Grille)

104 mm (41/8")

Mounting Depth

100 mm (315/16")

Cut-Out Hole Diameter

387 x 234 mm (151/4 x 93/16")

Fixing Type

6 position Tri-Grip dog fixings

Construction Material

Mineral filled ABS, RoHS compliant

Weight

4.1 kg (9 lb)

Pre-Construction Bracket

WB8 Pre-Construction Bracket (Green)

Back Box

WCBOX-L

Sold As

Single Unit

Accessories

We currently do not have any accessories available for Monitor Audio W380-IDC 8" In-Wall 3-Way Speaker.
