Overview

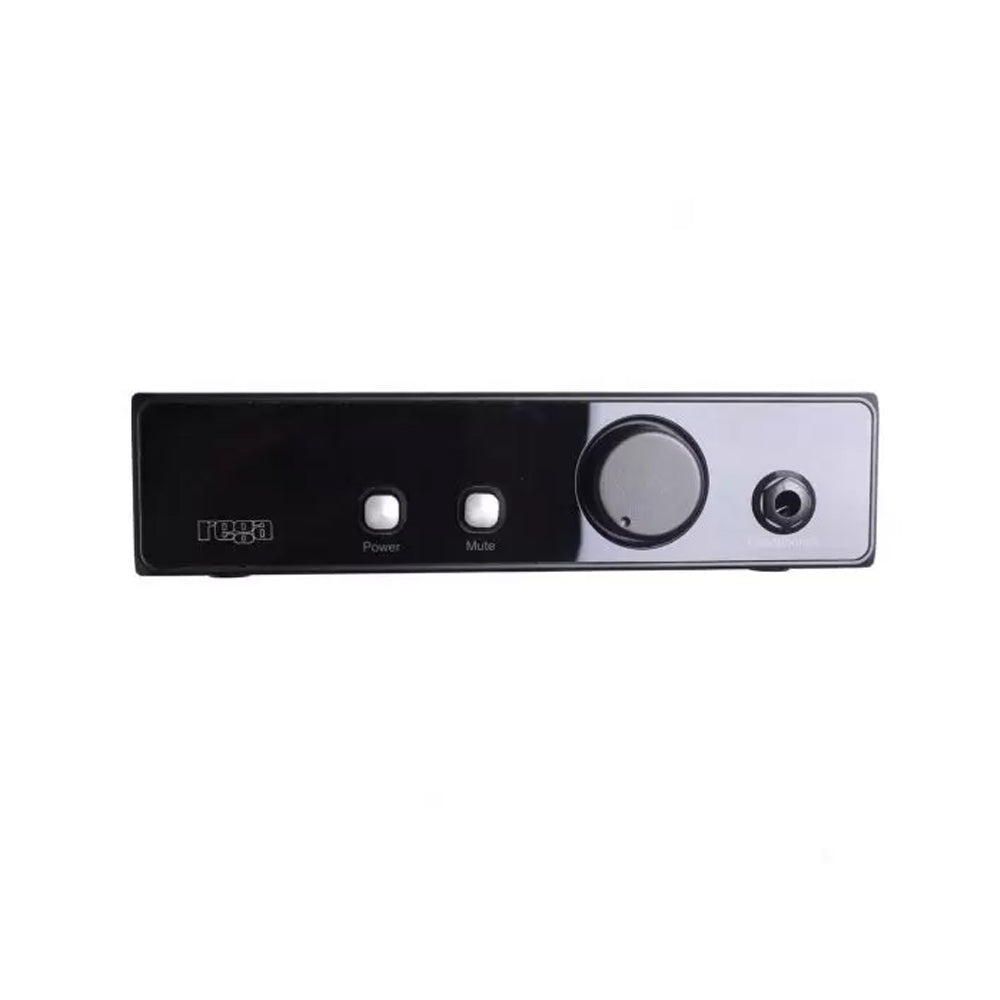

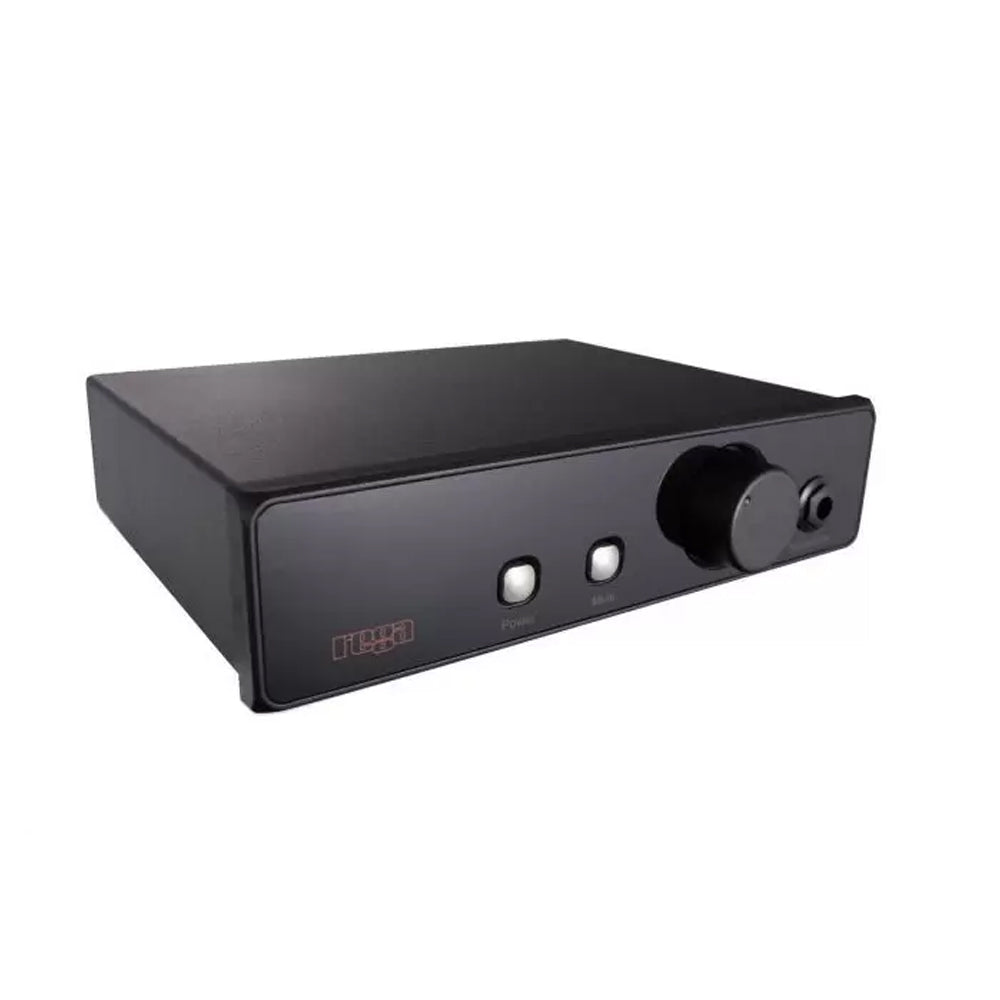

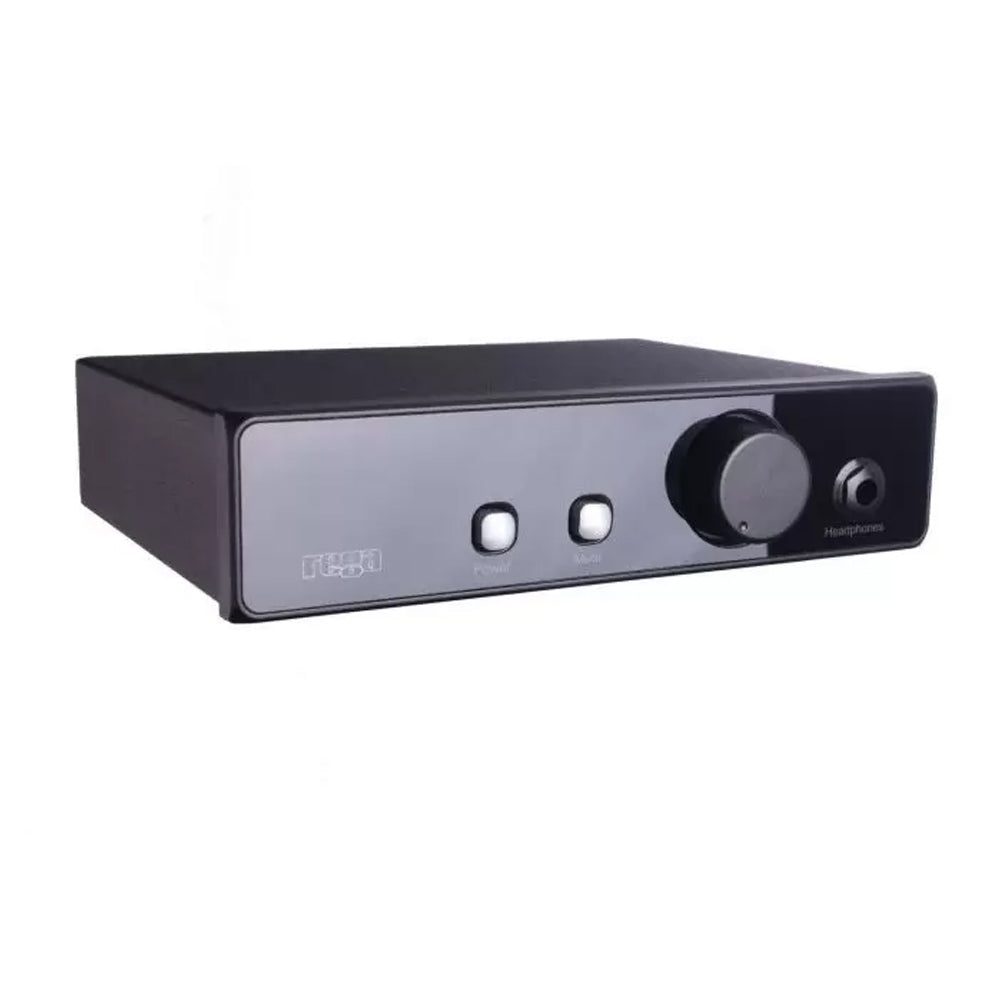

The new Rega EAR headphone amplifier benefits from a new surface mount layout and design.
The Rega Ear headphone amplifier comes housed in Rega's new style case and offers exceptional performance and the Rega Ear also features the convenience of independent volume control & mute function.
- Dedicated headphone amplifier
- New surface mount layout and design
- Comes housed in Rega's new style case and offers exceptional performance
- Features the convenience of independent volume control & mute function
Specifications
Maximum output level
25 load 775mW
32 load 685mW
50 load 530mW
100 load 320mW
600 load 60mW
Open circuit voltage
6v
Input impedance
20K, Gain 28dB
Frequency response
12Hz to 37kHz
THD
Typically 0.003%
Signal to noise ratio
-100dB (22Hz - 22kHz)
(Referenced to max output level)
Maximum Power requirements
24VAC at 225mA (685mW 32)
Dimensions
W 178mm x D 155mm x H 45mm
Accessories
We currently do not have any accessories available for Rega Ear MK2 Headphone Amplifier.
