Overview
PHONO PRE AMPLIFIER

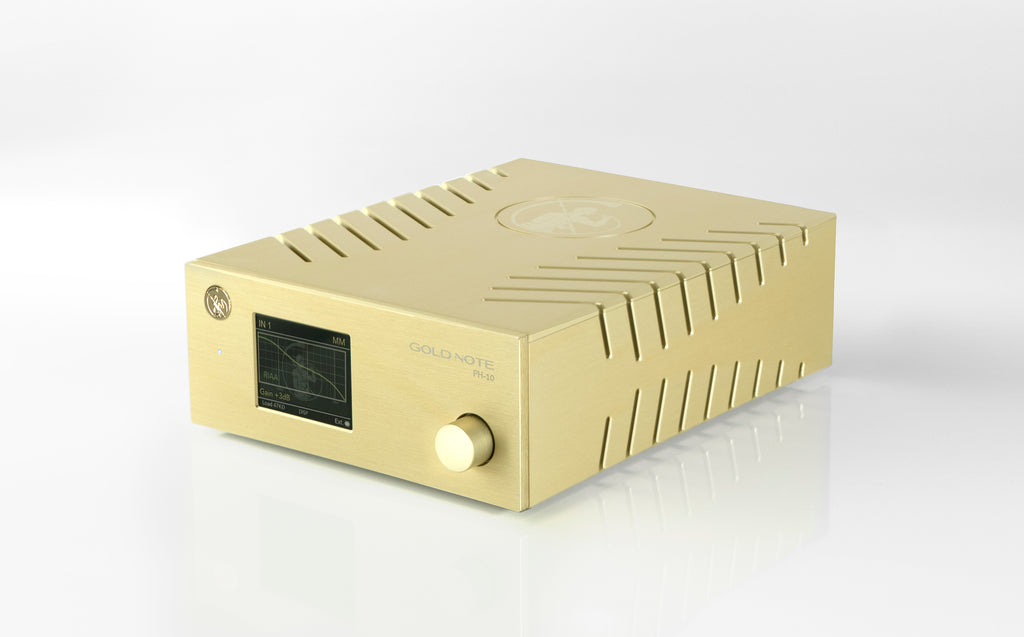

PH-10 is a new generation phono stage featuring 2 stereo RCA inputs completely independent, 6 EQ curves (RIAA, DECCA-LONDON e AMERICAN COLUMBIA, all available with enhanced option), MM and MC settings, and a large display that shows all the settings in real-time. The PH-10 also features our SKC (Single Knob Control) technology, an elegant solution to simply browse and change settings instantly, even while listening to music.
Specifications
SPECIFICATIONS
EQ CURVES
3 EQ curves (RIAA, Decca London, American Columbia) all with Enhanced option

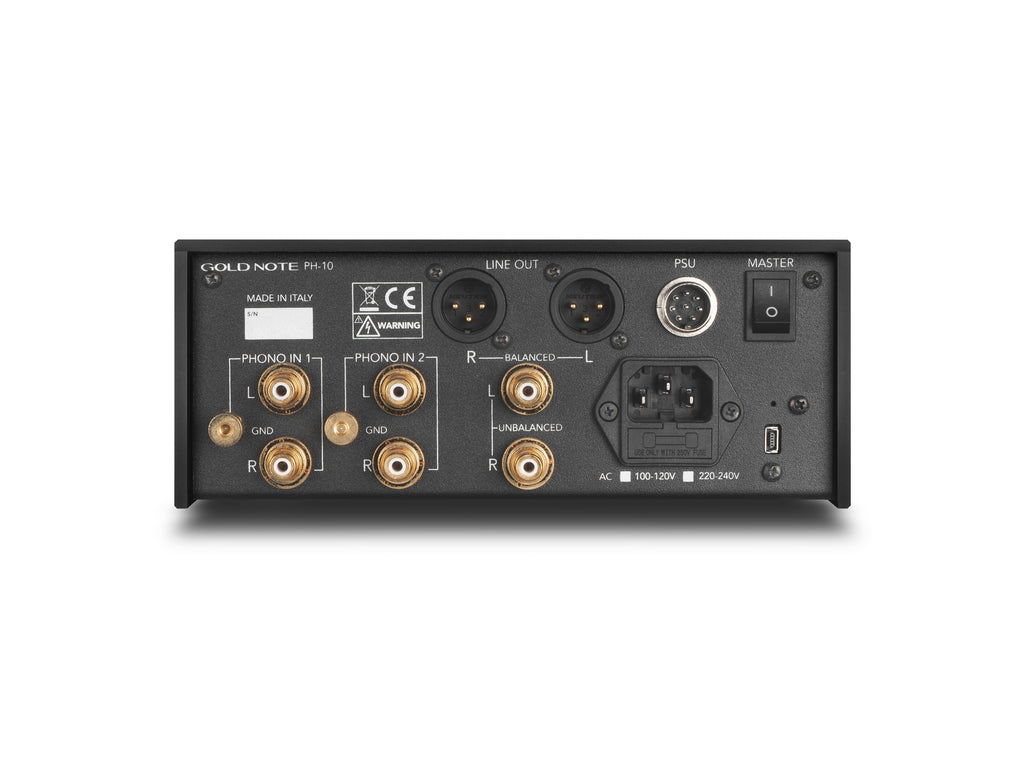

ANALOGUE INPUTS
2 x stereo RCA (MM/MC, independently managed)
ANALOGUE OUTPUTS
- 1 x stereo RCA unbalanced
- 1 x stereo XLR balanced
OUTPUT IMPEDANCE
50Ω
INFRASONIC FILTER
10Hz/36dB octave
TOTAL HARMONIC DISTORTION THD
<0.05% @ 1kHz
SIGNAL TO NOISE RATIO
89dB
DYNAMIC RESPONSE
105dB
FREQUENCY RESPONSE
- 20Hz – 20KHz ± 0.3dB
- Enhanced 20Hz – 50KHz ± 0.3dB
LINE OUTPUTS
- 1 x RCA
- 1 x XLR (+12dB)
INPUT SENSITIVITY
0.1mV MC up to 10.0mV MM
INPUT IMPEDANCE
9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ]
INPUT CAPACITANCE (MM)
220pF
GAIN
45dB MM to 65dB MC with 4 options [0dB, ± 3dB, + 6dB]
POWER
- Power Supply 100-120V or 220-240V, 50/60Hz
- Power consumption: 10W Super Linear supply
- Standby consumption: < 0,5W
- Fuse 0,5A F/T
DIMENSIONS AND WEIGHT
- 200mm W 80mm H 260mm D
- 3Kg net, 4Kg boxed
FINISHES

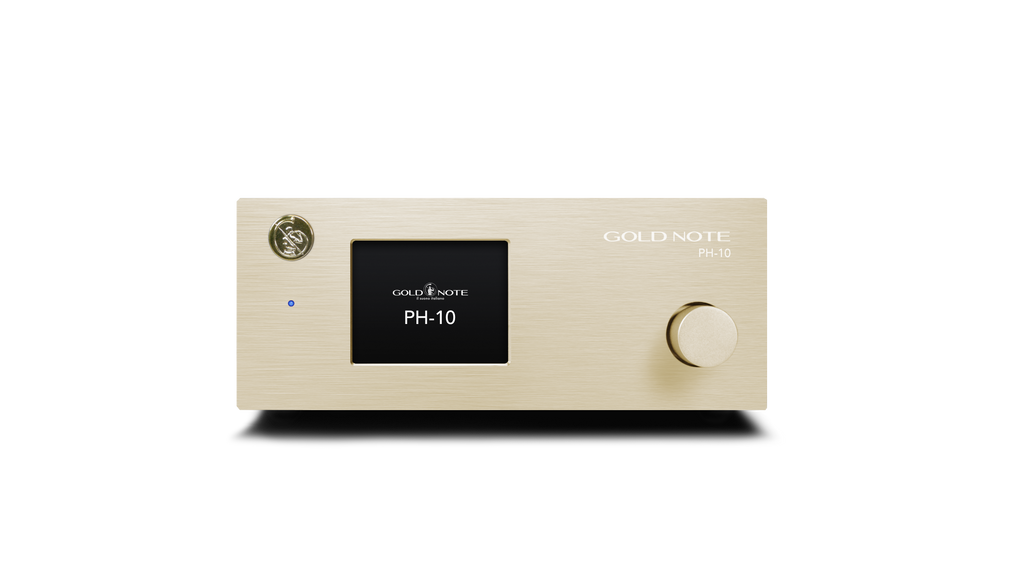

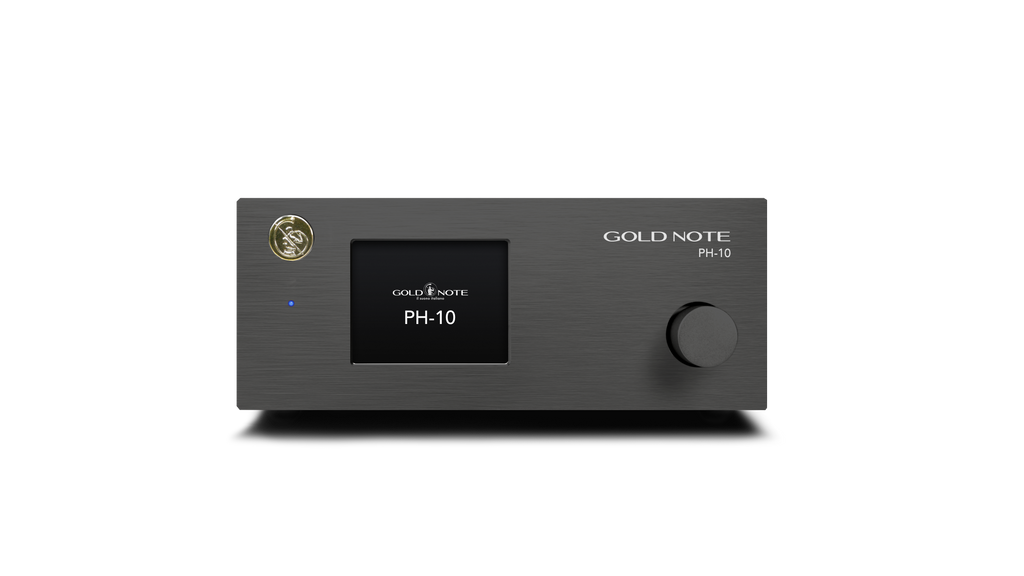

Brushed Aluminium available in Black or Gold
Accessories
We currently do not have any accessories available for Gold Note PH-10 Phono Stage.
