Overview

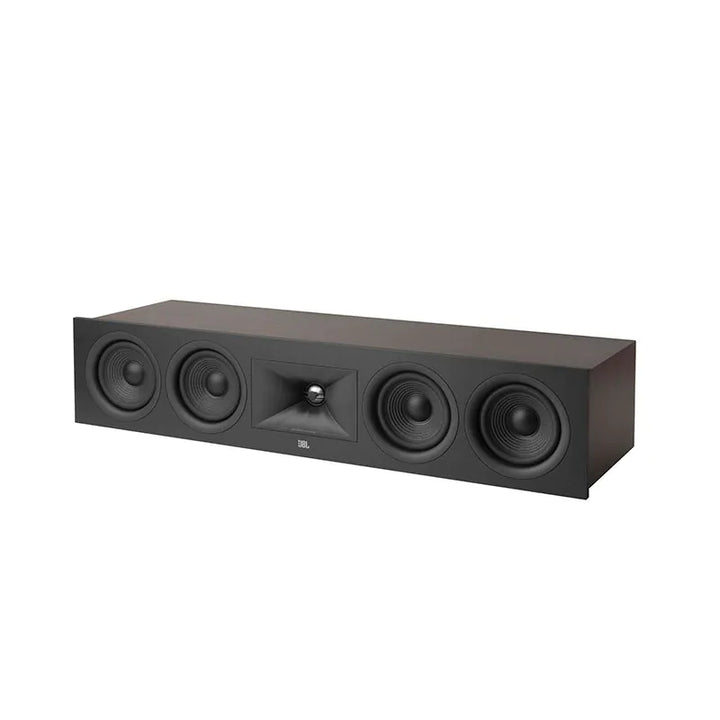

JBL 245C Centre Speaker
Product Overview
Designed and engineered in JBLs world-famous Acoustic Engineering Centre of Excellence in Northridge, California, Stage 245C is a centre channel loudspeaker perfectly matched with the entire Stage series. This loudspeaker features a 2.5-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminium dome tweeter, and quad 4.5-inch (114mm) Polycellulose cone woofers that provides deep, signature JBL bass.
Key Features
• Quad 4.5-inch (114mm) Polycellulose Ribbed Cone Woofers
• Precision 2.5-Way Crossover
• Next Generation HDI™ Horn
• 1-inch (25mm) Anodized Aluminium Tweeter
• Dual Rear-Firing Tuned Ports
• 5-Way Binding Posts
Specifications
Specifications
Type - Bookshelf Loudspeaker System
Low Frequency Driver - 5.25-inch (130mm) Polycellulose Ribbed Cone
High Frequency Driver - 1-inch (25mm) Anodised Aluminium
Waveguide - Next Generation HDI™
Recommended Amplifier Power - 20-150W
Frequency Response - ± 6dB 55Hz-25kHz
Sensitivity @ 1M - 2.83V 91dB
Nominal Impedance - 6 Ohms
Crossover Frequencies - 1.3kHz/2.0kHz
Enclosure Tuning - Bass Reflex via Dual Rear-Firing Tuned Ports
Finish - Espresso or Latte
Dimensions (HxWxD) - 6.1in x 29.1in x 8.5in (156mm x 740mm x 217mm)
Product Weight - 26.4 lbs. (12.0kg)
Shipping Weight - 32.2 lbs. (14.7kg)
Accessories
We currently do not have any accessories available for JBL 245C Centre Speaker.
