Overview
PRE-ORDER: Available July
The MOON 461 is an analog power amplifier designed to amplify the signal from a preamplifier with absolute accuracy. As the most powerful model in the Compass Collection, it is engineered to deliver substantial output capability, low distortion, and stable performance across a wide range of loudspeaker loads, while preserving the signal integrity with transparency, dynamic expression, and composure under demanding conditions.
At the heart of the 461 is proprietary MOON Distortion-Cancelling Amplifier (MDCA) architecture, pioneered in the flagship North Collection. This advanced topology significantly reduces distortion and improves linearity, contributing to a highly faithful rendering of the source signal with exceptional clarity and accuracy.

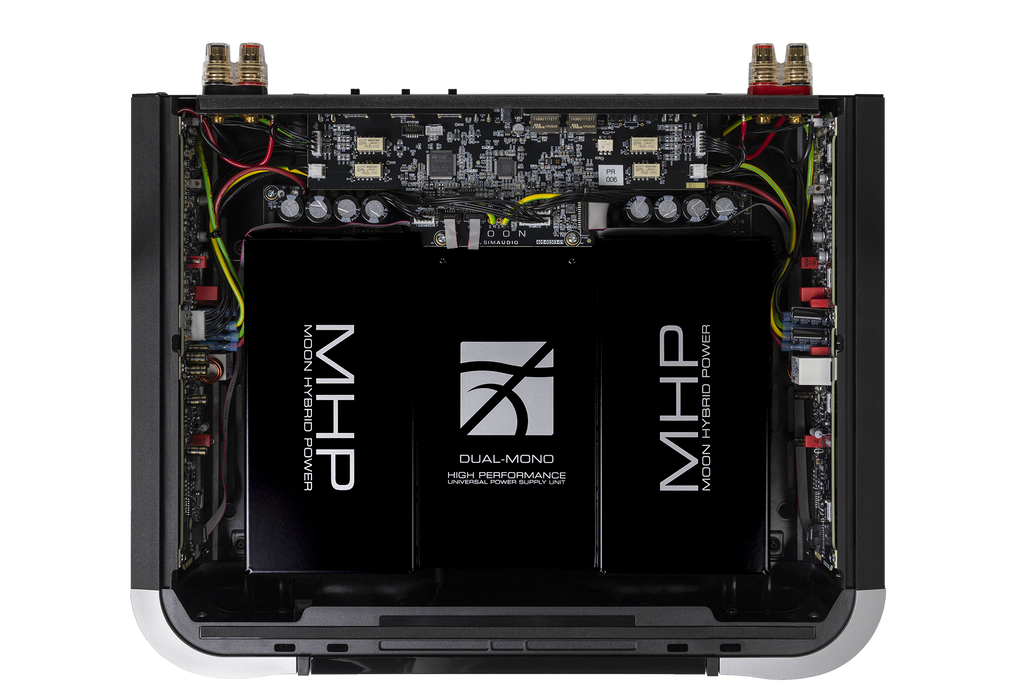

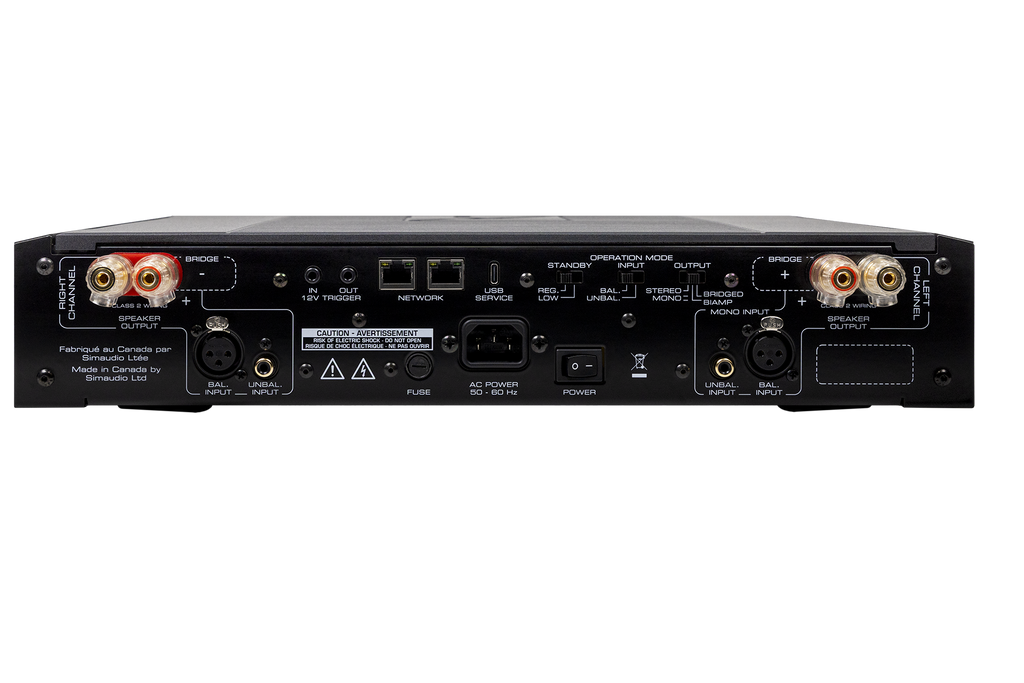

Two proprietary MOON Hybrid Power (MHP) supply modules—one dedicated to each channel—provide a stable, low-noise, and high-current energy source to the amplifier. This dual-mono implementation improves channel separation, lowers crosstalk, and enhances current delivery, particularly into lower-impedance loads. A Stereo / Bridged Mono / Bi-Amping Mono mode switch expands installation flexibility and supports a wide range of loudspeaker configurations.

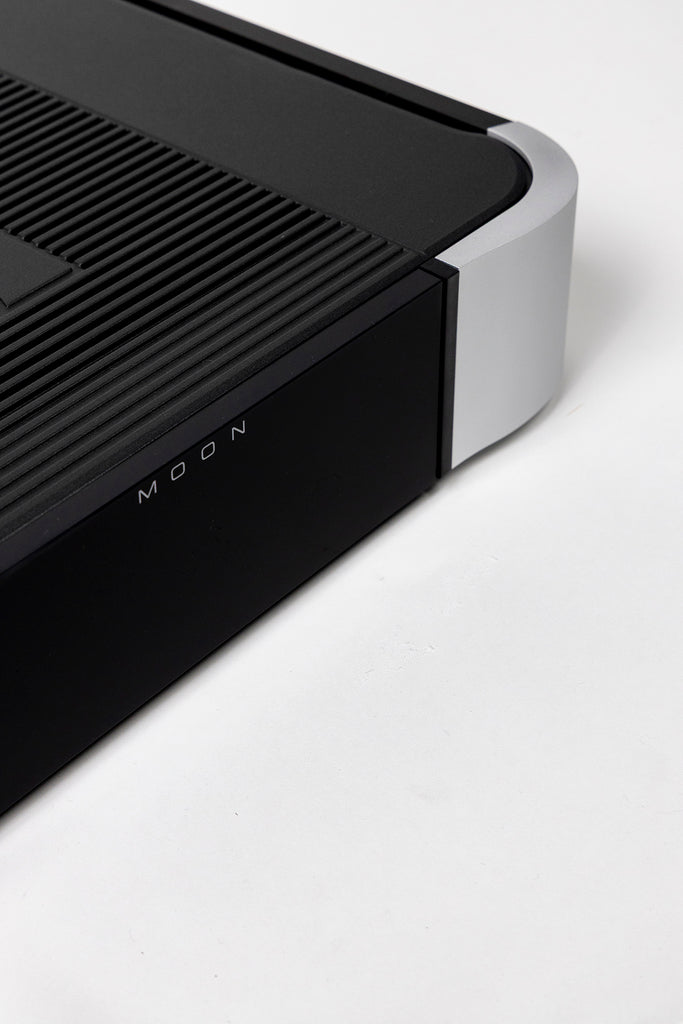

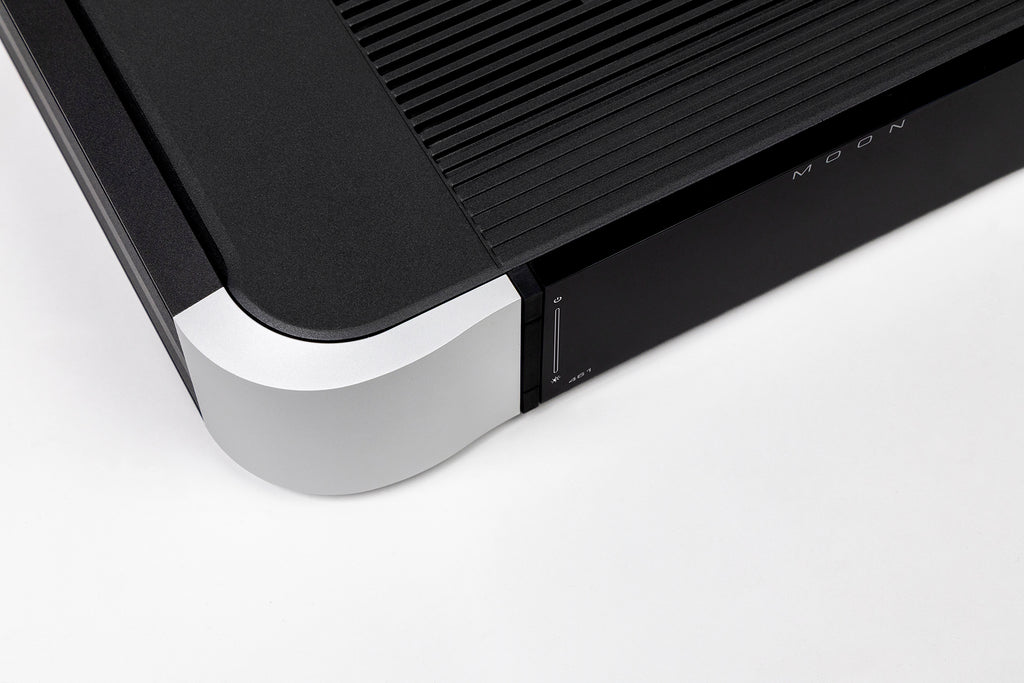

With its black chassis, bead-blasted aluminium cheeks (available in black or silver), and clean architectural lines, the MOON 461 combines robust engineering with the distinctive visual language of the Compass Collection.
Specifications
Specifications
Output Power (Stereo 8 Ω) : 150 W
Output Power (Stereo 4 Ω) : 300 W
Output Power (Mono 8 Ω) : 450 W
Input Sensitivity : 1 V
Input Impedance : 22 kΩ
Gain : 31 dB
Frequency Response : 5 Hz – 100 kHz +0/-3 dB
Total Harmonic Distortion + Noise (@ 1 W) : 0.005%
Total Harmonic Distortion + Noise (@ 150 W) : 0.003%
Intermodulation Distortion : 0.005%
Signal-to-Noise Ratio : 114 dB
Crosstalk : −114 dB
Damping Factor : 425
Power Consumption (Idle) : 35 W
Power Consumption (Full Power Standby) : 34 W
Power Consumption (Low Power Standby) : 1 W
Dimensions (width x height x depth) : 16.9x3.5x14.5 in / 42.9x8.7x36.8 cm
Shipping Weight : 24 lbs / 11 kg
Accessories
We currently do not have any accessories available for Moon 461 Power Amplifier.
