Overview

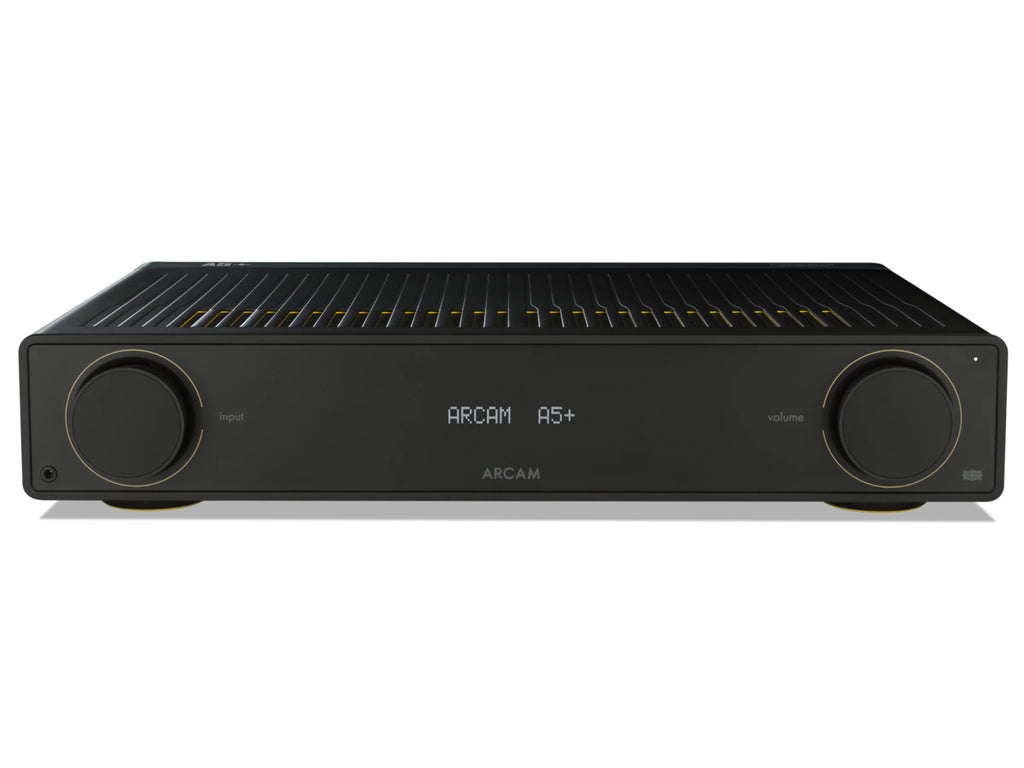

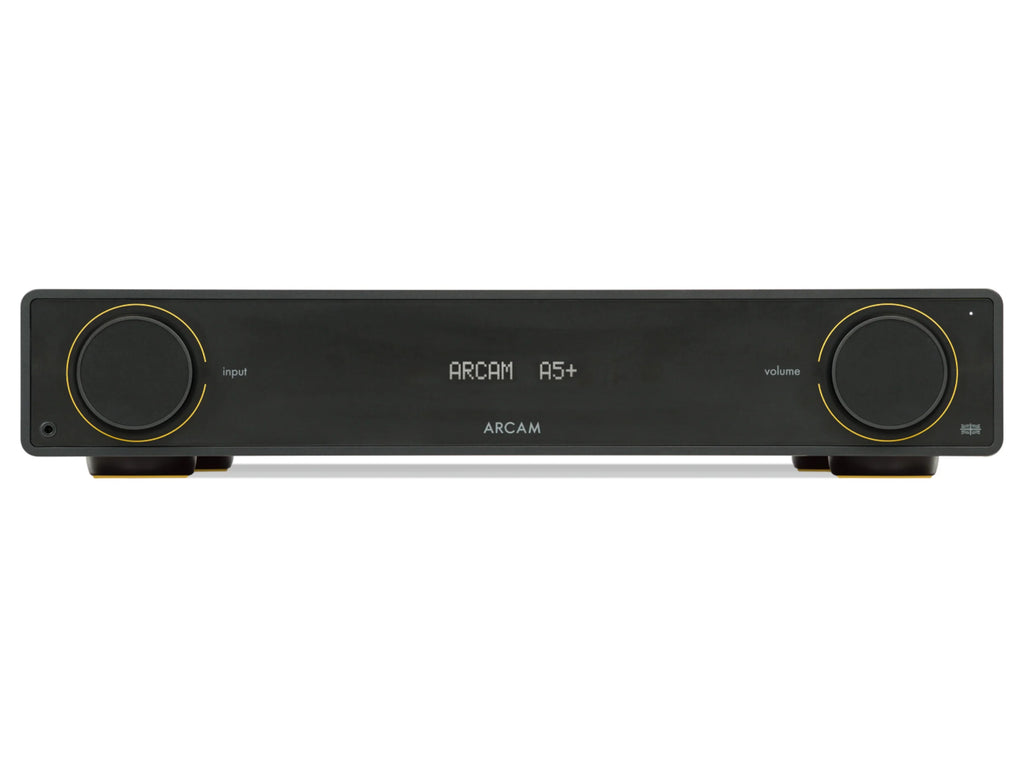

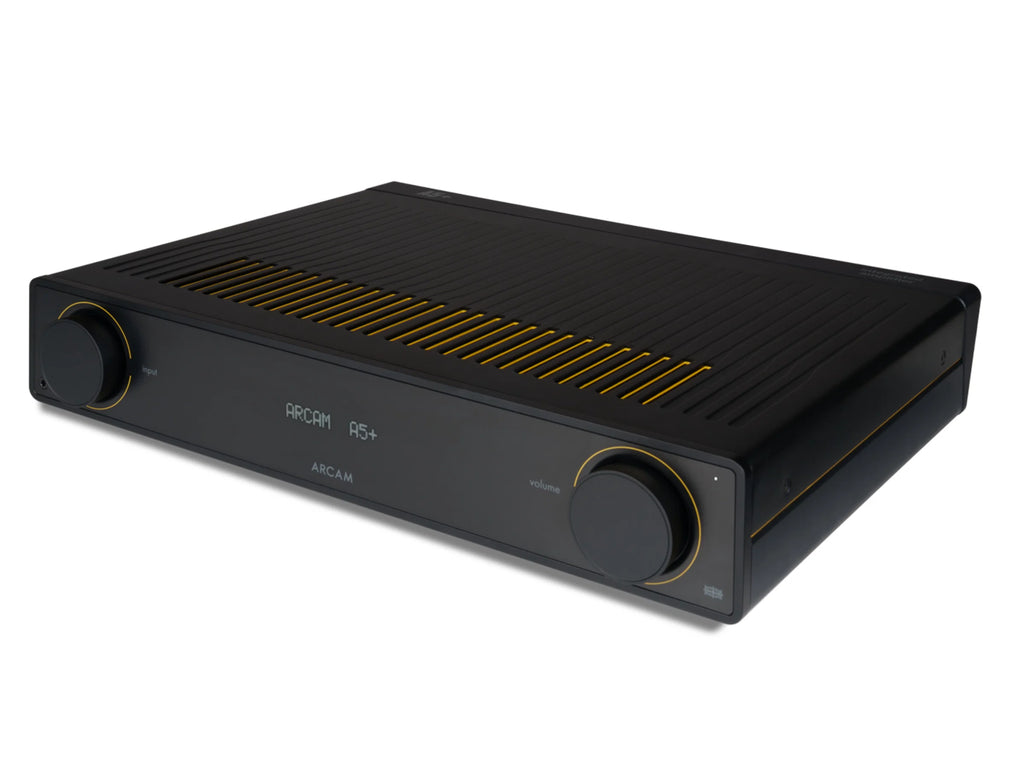

A5+
The "A" in ARCAM stands for amplification, where Arcam's expertise lies. The A5+ is the latest in nearly 50 years of amplifier design and manufacture, dating back to Arcam's first product in 1976 —the A&R Cambridge A60 amplifier. Since the launch of the award-winning ARCAM Radia A5, Arcam haven't rested. Arcam's engineering team pushed further to create the ARCAM A5+, an even better sounding and more versatile integrated amplifier.

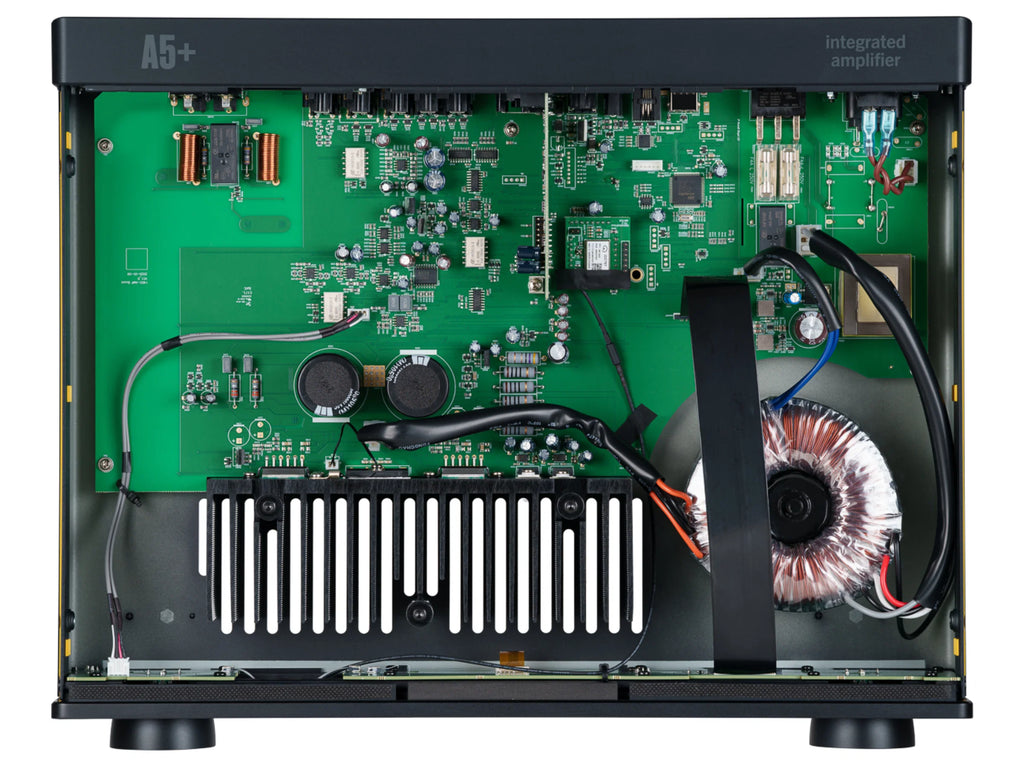

The A5+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.
With a wide array of digital and analogue inputs, including a meticulously tuned phono stage, the A5+ ensures impeccable sound quality for everything from vinyl to streaming.
Specifications
Specifications
Continuous power output (0.5% THD) 2 channels driven
8Ω, 20Hz ‑ 20kHz 50W
4Ω, 1kHz 75W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.003%

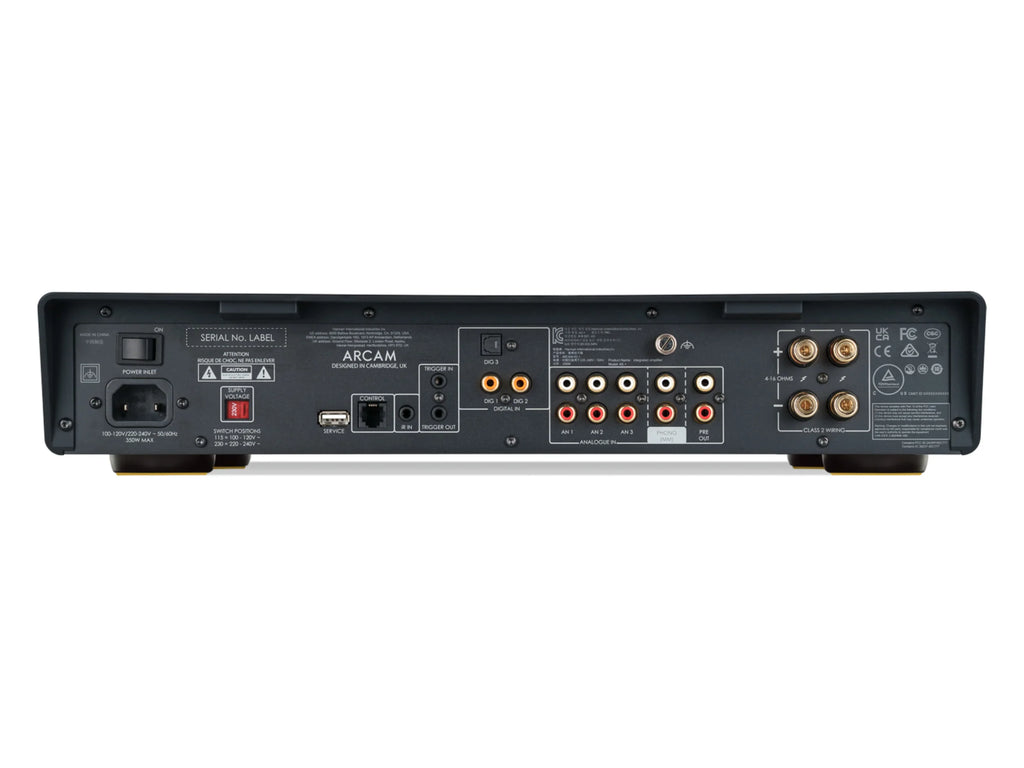

Analogue Inputs
Number of inputs 3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
Frequency response 20Hz—20kHz ± 0.2dB
Phono (MM) Input
Input impedance 47kΩ + 100pF
Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB
Digital Inputs
Supported Sample Rates 192, 176.4, 96, 88.2, 48, 44.1 kHz
Bit depths 24, 16
Frequency response (filter 1) 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB
Headphone Output
Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V
Load range 16Ω - 2kΩ
Wireless Specifications
Bluetooth Version 5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power 2,400 MHz to 2,483.5 MHz: <20dBm
General
Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 350W
Power consumption (standby) <0.5W
Dimensions (WxDxH) 431mm x 344mm x 83mm
Weight 8.14kg
Supplied accessories Mains lead(s)
Remote control with 2 x AAA batteries
Quick Start Guide
Important Safety Instructions
Accessories
We currently do not have any accessories available for Arcam A5+ Integrated Amplifier.
