Overview

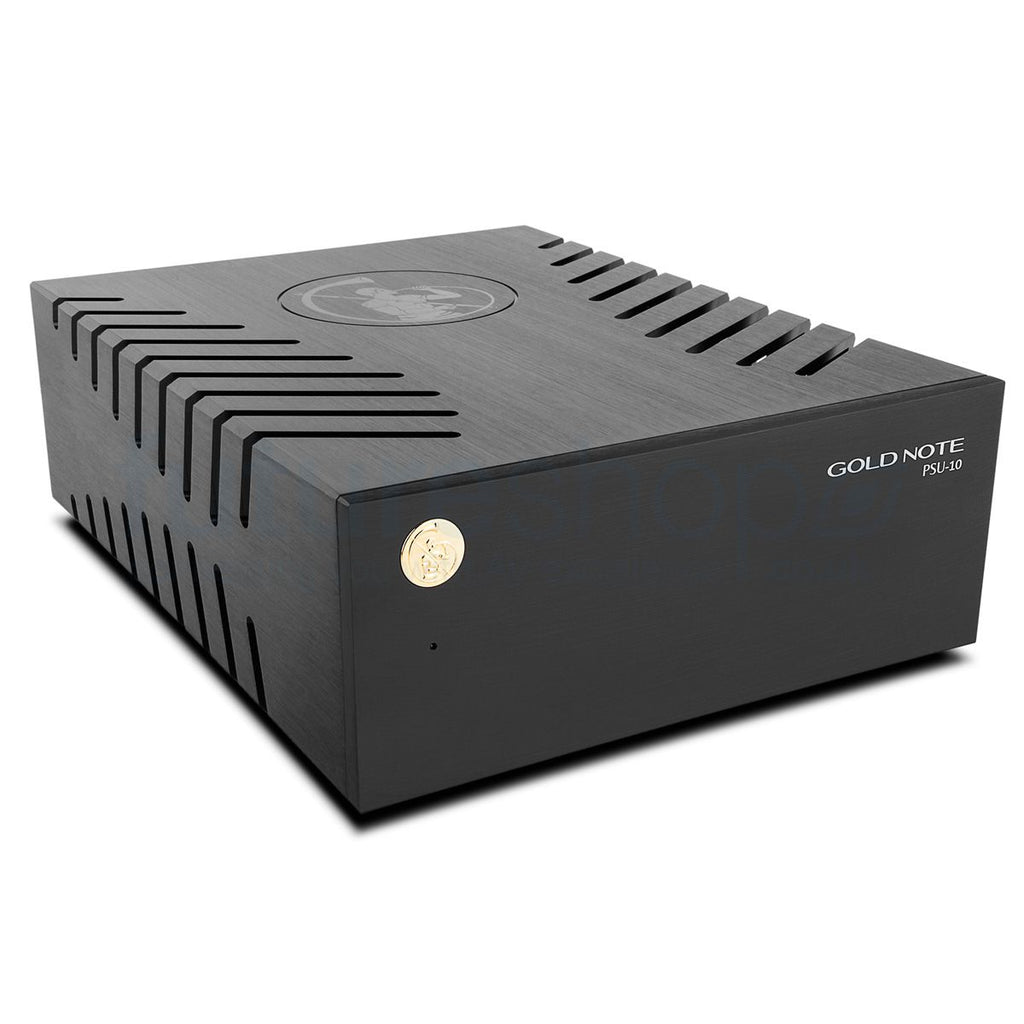

Gold Note PSU-10 Inductive Power Supply for PH-10
The PSU-10 is designed by Gold Note to work exclusively with the PH-10 phono stage. Benefitting from Gold Note's proprietary Dual Choke technology with an inductive filter and no less than 4 transformers, this unit will allow your PH-10 to perform to the best of its abilities.
What Gold Note say
THE PERFECT ADD ON
The special external power supply PSU-10 has been designed to enhance the performance of the phono stage Gold Note PH-10, thanks to its Super Inductive Dual Choke hybrid design.
It features an inductive filter on the analogue stage and a dual choke design powered by a double inductor driving both the negative and positive high-current stages. The Gold Note proprietary Dual Choke design perfectly filters the signal voltage to eliminate any interference and electrical noise from the AC power system.
With its massive power supply, it provides a shield from the AC power grid. By achieving complete insulation, an ideal working environment is created for the phono stage PH-10 to perform at its best.
ULTRA-CLEAN POWER
The large and ultra-clean power generated enhances noise reduction, greater dynamic, better resolution, and finer audio details guaranteeing the best realism and musicality.

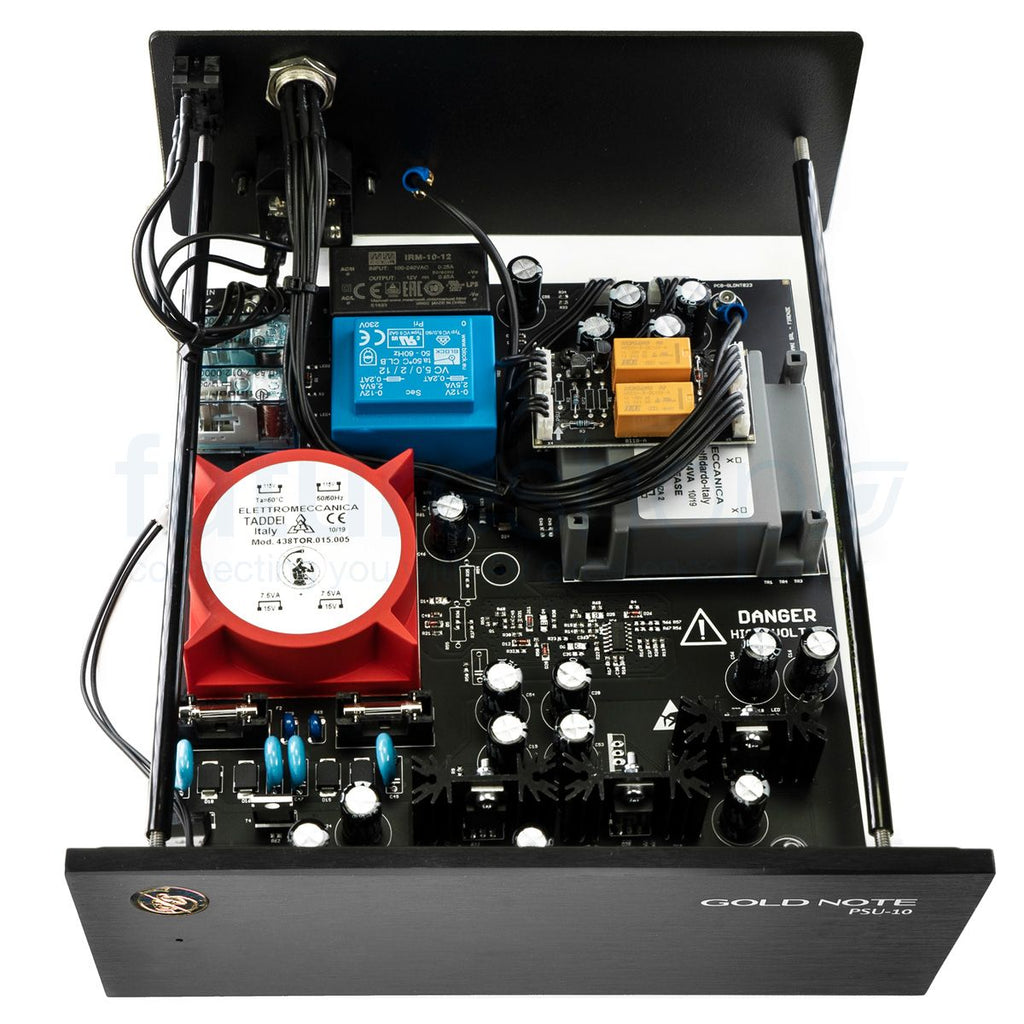

Dedicated to the PH-10 phono stage, the PSU-10 features 4 power supply stages with 4 ultra-low-noise voltage regulators. The device is powered by 4 transformers ( 3 dedicated to the power supply and 1 for the inductive dual choke special filter).
IMPROVES THE PERFORMANCE OF YOUR PH-10
The PSU-10 is the perfect match for our award-winning phono stage PH-10. Add the dedicated external power supply to take the PH-10 to the next level and enjoy your records with improved details and realism.
Features
- TECHNICAL FEATURES
- Four rail audio grade power supply
- MAXIMUM VARIATION OF OUTPUT VOLTAGE
- 0,05 %
- LINE NOISE REJECTION
- >80dB
- COMMON MODE NOISE REJECTION
- >80dB
- FULL POWER RESPONSE TIME
- <2,5µsec
Specifications
SPECIFICATIONS
- POWER SUPPLY:
- 100-120V / 220-240V with auto sense, 50/60Hz
- POWER CONSUMPTION:
- 25W
- DYNAMIC POWER:
- >50W
- STAND BY POWER:
- <1W
- FUSE:
- 0,5A T
- DIMENSIONS:
- 200mm W | 80mm H | 260mm D
- WEIGHT:
- 3kg – net
- 4kg – boxed
Accessories
We currently do not have any accessories available for Gold Note PSU-10 Inductive Power Supply for PH-10.
