Overview
STREAMING INTEGRATED AMPLIFIER
The IS-10 is the new All-In-One of our compact series of electronics, a complete High-End stereo system featuring a powerful 90W @ 8Ω (stereo) integrated amplifier, and D/A converter with high-resolution streaming- supporting up to PCM 32bit/384kHz and DSD256. It also includes an audiophile headphone preamp with a 6,3 mm connection to drive any type of headphones. Fully Roon Ready, it’s compatible with Tidal, Tidal Connect, MQA, Qobuz, Spotify and Deezer (via LAN, Wi-Fi and Bluetooth).
The IS-10 works also as a monoblock when matched with a PA-10 EVO power amplifier, increasing the power output to 280W @ 8Ω/4Ω.
Specifications
SPECIFICATIONS
D/A CONVERTER:
AKM AK4493 PCM (up to 32bit/768kHz and DSD256)
FREQUENCY RESPONSE:
5Hz-50kHz (-3dB)
THD (Total Harmonic Distortion):
0.001% (1kHz @ 1W)
SIGNAL TO NOISE RATIO:
125dB
DYNAMIC RANGE:
120dB
DIGITAL INPUTS:
- 2 x TOS-optical PCM up to 24bit/192kHz
- 1 x RCA coaxial PCM up to 24bit/192kHz
- 1 x USB-A port DSD64 and PCM up to 24bit/192kHz, formatted in FAT32/NTFS (32Gb max for pen drives)
ANALOGUE INPUT:
2 x RCA unbalanced (pairs)

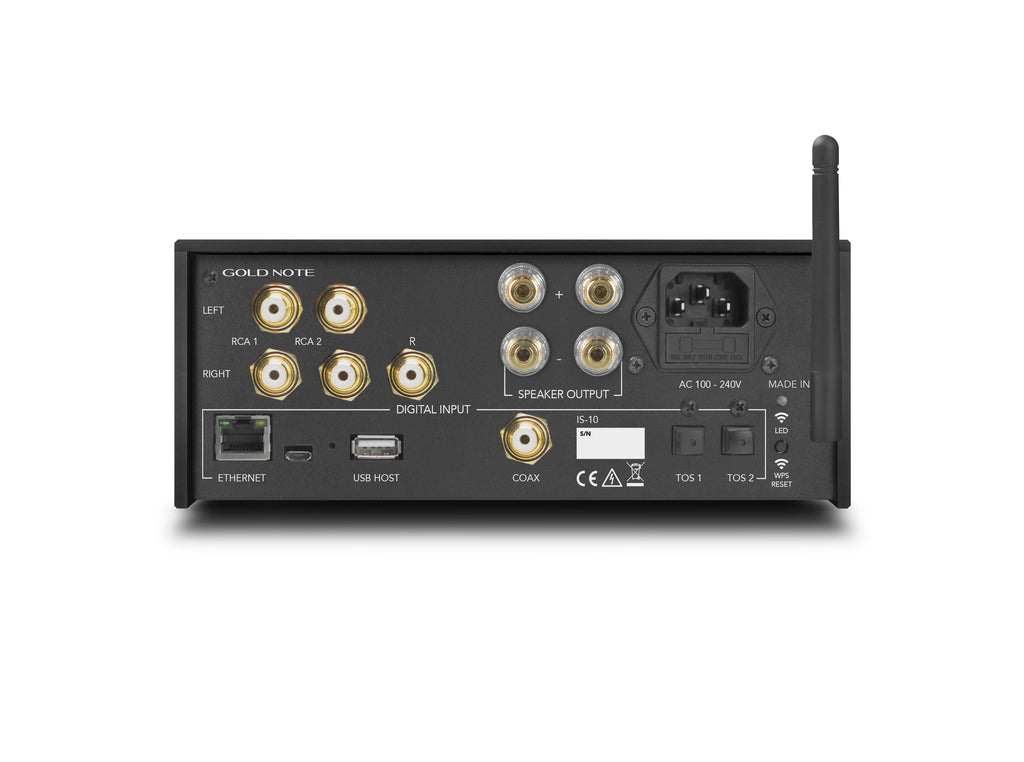

AUDIO OUTPUTS:
- SPEAKER: Binding posts
- HEADPHONE: 1x Headphone output with 6.3 mm jack
- MONO RIGHT: 1x RCA unbalanced (single connector)
POWER:
- Power supply: 100-240V / 50-60Hz
- Power consumption: < 1W (standby)
- Fuse 5A T
NETWORK CONNECTIVITY:
- LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps)
- Bluetooth: High Definition 5.0 (44/16)
HIGH-QUALITY STREAMING:
- Qobuz
- Tidal & Tidal Connect
- MQA
- vTuner
- Deezer
- Spotify Connect
- Airplay 2
- Roon Ready
SUPPORTED AUDIO FORMATS (NETWORK):
- Up to PCM 32bit/384kHz
- AIFF (.aif, .aiff, .aifc),
- ALAC
- WAV (.wav) packed/unpacked
- FLAC
- MP3
- DSD256: DSF, DFF
- Apple Lossless
- OGG
- Monkey’s
- IMPORTANT: UPnP server must support DSD streaming in order to stream DSD files.
SUPPORTED MEDIA SERVERS:
All UPnP / DLNA / Roon
DIMENSIONS AND WEIGHT:
- 200 W x 80 H x 260 D mm
- Weight: Kg. 4 net - Kg. 5 boxed
FINISHES:
Brushed Aluminium available in Black, Gold and Silver
REMOTE CONTROL:
Multifunctional IR remote control
APP:
GN Control
Accessories
We currently do not have any accessories available for Gold Note IS-10.
