Overview

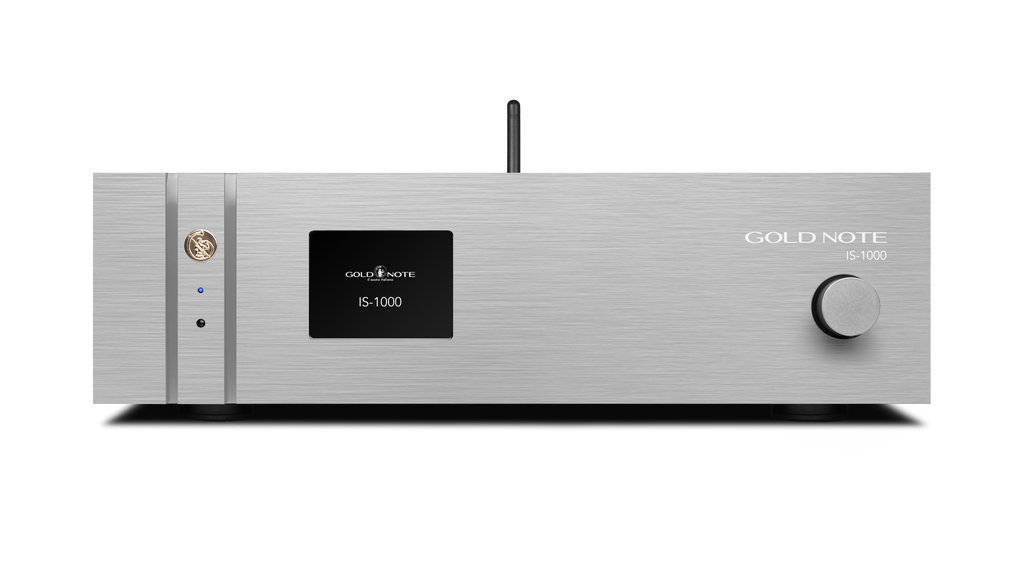

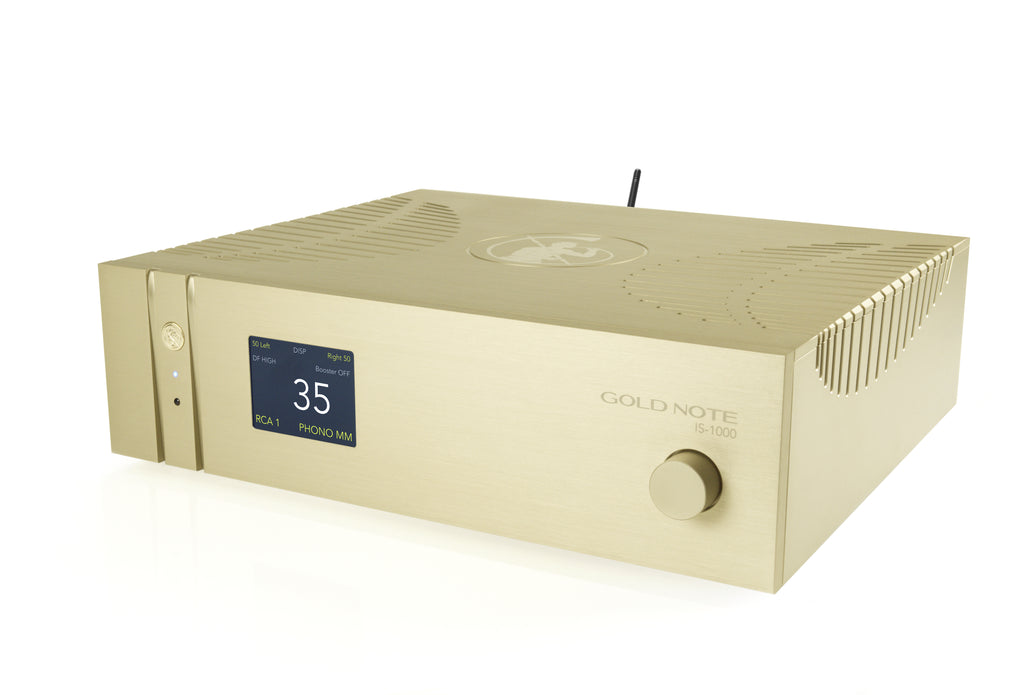

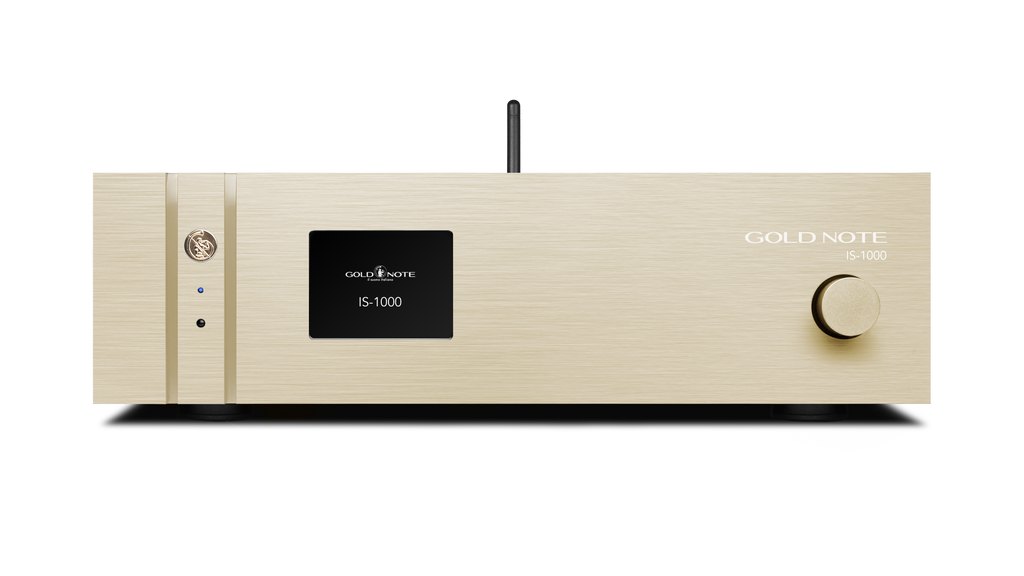

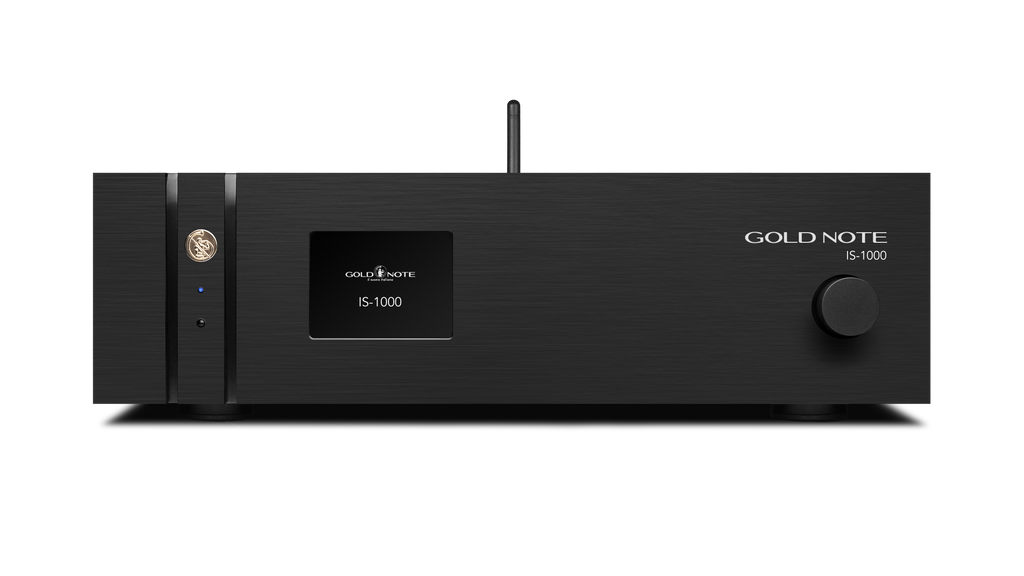

STREAMING INTEGRATED AMPLIFIER
IS-1000 MKII is a complete High-End stereo system, the first true All-In-One designed to offer unparalleled audio performance and advanced features - class AB Integrated Amplifier (125Watt on 8Ω @1kHz) - MM/MC Phono Preamplifier - D/A converter - and a high-resolution Streamer. IS-1000 MKII is easy to control through our Gold Note App, it lets you browse your collection of digital music stored locally on a NAS or USB flash drives and is compatible with Roon, Tidal, Tidal Connect, MQA, Qobuz, Spotify and Deezer.
Specifications
SPECIFICATIONS
INTEGRATED AMPLIFIER:
Class AB Mosfet (125Watt @ 8Ω @1kHz)
PHONO STAGE:
- MM: gain 42dB, load 47kΩ
- MC: gain 60dB, load 470Ω
- Matches cartridges with internal impedance up to 10Ω and output level from 0.15mV to 7.0mV
DAC:
BurrBrown PCM1792A
THD (Total Harmonic Distortion):
- 0,005% @ 5W
- 0,1% @ 0,1 to 50W (20Hz - 20kHz)
DAMPING FACTOR:
>100
SIGNAL TO NOISE RATIO:
- >100dB Line and Digital Inputs
- >80 dB Phono (MM)
DSD:
DSD64
BOOSTER
3 adjustable levels (by-passable/off)
DIGITAL INPUTS
- 1x RCA Coax PCM up to 24bit/192kHz
- 3x Optical Tos-Link PCM up to 24bit/192kHz
- 1x USB-A port DSD64 and PCM up to 24bit/192kHz, (32Gb max for pen drives, FAT32/NTFS)
ANALOGUE INPUTS:
- 1x stereo XLR balanced
- 2x stereo RCA unbalanced (1x Line/Phono MM/MC, 1x Line/AV)
ANALOGUE OUTPUTS:
- 1x stereo RCA fixed (0dB, 1.4Vrms)
- 1x stereo RCA variable (up to +9,5 dB, 4Vrms max)
OUTPUT IMPEDANCE:
50Ω
POWER:
- Power supply: 100-120V or 220-240V, 50/60Hz
- Power consumption: 30-400W max
- Standby consumption: < 0,5W
- Fuse 220/240V 3,15A T
- Fuse 100/120V 6,3A T
NETWORK CONNECTIVITY:
- LAN/WLAN (WiFi) 802.11b/g via RJ45 10/100Mbps
- PCM 24/192 and DSD64
HIGH QUALITY STREAMING:
- Roon Ready
- Tidal Connect
- Airplay 2
- TIDAL & MQA via Tidal
- Qobuz
- Spotify & Spotify Connect
- Deezer
- vTuner
SUPPORTED MEDIA SERVERS:
- Minim
- Bubble UPnP
- All certified UPnP media servers
SUPPORTED AUDIO FORMATS:
- AIFF (aif, aiff, aifc)
- WAV (wav) packed/unpacked
- FLAC
- WmA Windows media Audio 9
- WAX Windows media audio metafiles
- ASX Advanced Stream Redirector (asx)
- MPEG-4 (aac, m4a , Apple lossless)
- MP3
- DSD64 [.dsf] files converted to high-resolution PCM over UPnP protocol
REMOTE CONTROL:
Multifunctional IR remote control
APP CONTROL:
DIMENSIONS AND WEIGHT:
- Dimensions: 430mm W x 135mm H x 375mm D
- Weight: Kg. 18 net, Kg. 23 boxed
FINISHES:
Brushed Aluminium available in Black, Silver or Gold
Accessories
We currently do not have any accessories available for Gold Note IS-1000 MKII DELUXE.
